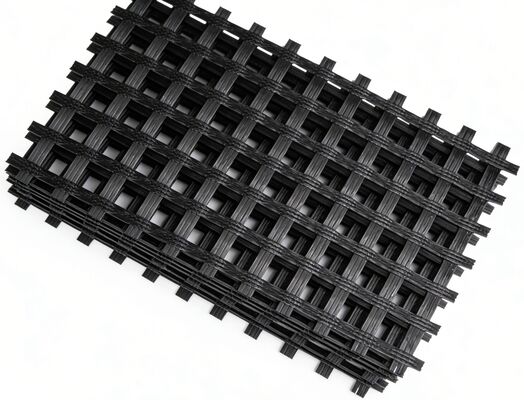

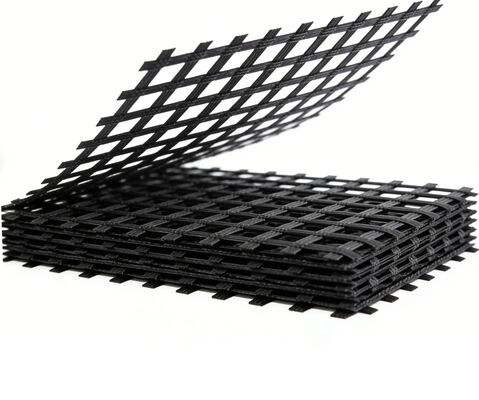

Asphalt Reinforcement FG150-150 KN/M Bitumen Coated Grid Mesh Prevent Asphalt Cracking

Asphalt Reinforcement FG150-150 KN/M Bitumen Coated Grid Mesh Prevent Asphalt Cracking

Bitumen Coated Grid Mesh Product Features:

- Biaxial High Tensile Strength: With ≥150KN/m tensile strength in both warp and weft directions,

it efficiently disperses pavement stress, resists heavy-load deformation, and fundamentally blocks crack propagation.

- Premium Bitumen Coating: Full-coverage modified bitumen coating ensures tight interlayer bonding

with hot asphalt mixture, no slipping, no peeling, no aging, and enhanced overall pavement integrity.

- Low Elongation Performance: Break elongation ≤3%, maintaining high structural rigidity, preventing

pavement rutting and deformation, and keeping asphalt pavement flat for a long time.

- Extreme Weather Resistance: Stable performance within -40℃ to 200℃, adapting to high-temperature

asphalt paving construction and harsh outdoor service environments, UV-resistant and acid-alkali resistant.

- Long Service Life: Adopting high-quality non-creep glass fiber substrate, the product has a service life

of more than 20 years, matching the design life of asphalt pavements.

Reinforcement Fiberglass Geogrid​ ​ Key Properties:

• Aperture Size:

Typically ranges from 20x20 mm to 40x40 mm, optimized for optimal interlock with common aggregate sizes.

• Coating:

Coated with a polymeric material (e.g., PVC) to protect the glass fibers from abrasion and

damage during installation and to provide UV resistance.

Reinforcement Fiberglass Geogrid​  Specification:

Before Coated Bitumen                                            After Coated Bitumen

Mesh Size 25.4x25.4mm                                           Mesh Size 12.8x 12.8 mm

Bitumen Coated Grid Mesh Applications:

- New construction of highways, municipal roads, national & provincial highways

- Old asphalt pavement overlay & white-to-black reconstruction projects

- Bridge deck pavement, road widening and busy intersection sections

- Airport runways, port freight roads, heavy-load parking lots

- Industrial zone roads, highway ramp and maintenance projects

Reinforcement Fiberglass Geogrid​ Key Considerations and Potential Downsides :

Not a Fix for Structural Failure:

If your old driveway is failing due to a poor base

(e.g., sinking, severe rutting), a geogrid will not help. The underlying base must be sound and stable.

Proper Thickness is Critical:

Paving too thin of an asphalt layer (e.g., 1.5-2 inches) over the grid will not

provide enough material to interlock properly and can lead to raveling (the asphalt breaking apart around the grid).

Cost:

It adds to the initial cost of the driveway project due to the material cost and specialized installation knowledge.

Contractor Experience:

Not all asphalt contractors are familiar with the proper installation technique for paving geogrids. It is vital to hire a contractor who has proven experience with this specific product.
