Geocell (HDPE Geocell) is a lightweight and flexible three-dimensional, expandable panels made from

 High Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely

strong configuration.
In many scenarios (various roads, airstrips, container yards, parking lots), in order to improve the bearing

capacity of the road surface, reduce uneven settlement, and reduce maintenance costs in the later period,

 the geocell will be the best choice. Besides, geocell is widely used in slope protection, retaining walls, channel lining.

3D HDPE Geocell Advantage:

1.Light material, resistant to wear, stable in chemical properties, anti-aging, resistant to acids and alkalis, applicable to different soil and desert and other geological conditions.
2.High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance the supporting ability and scattered load function of roadbed.
3.High carrying capacity and good dynamic performance and high erosion ability.
4.The geometry size can be changed to meet different needs of the project, such as height and welding distance.
5.Retractable and small loading volume, convenient joint, speed construction.
6.Local material can be used during construction, reduce the construction cost, easy to be transported after folding together.

3D Honeycomb Road Geocell Different Types :

Based on Surface Texture

Smooth Geocells:
Characterized by a smooth surface, these are often used in applications

where reduced friction with the soil is desired.

Textured Geocells:
Feature a textured surface to enhance frictional resistance and soil-geocell interaction,

providing better soil confinement and stability.

Based on Perforation
Non-perforated Geocells:
Offer higher strength and are used in applications requiring greater structural support.

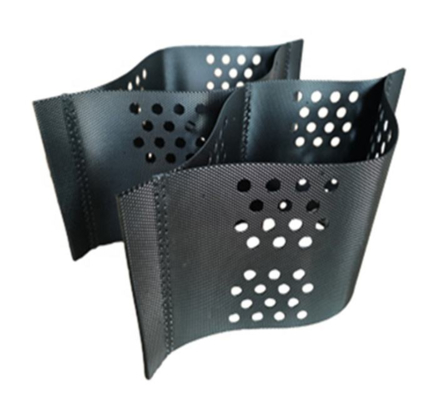

Perforated Geocells:
Allow for water and air passage, which is beneficial in certain erosion control and soil stabilization projects where drainage is a key requirement.

3D HDPE geocells Common applications :

1 geocell can be used to stable the bed of railway and road
2.geocell can be used to bear the bed of road
3.geocell can be used to bear the loading dykes and walls
4.geocell can be used to administer shallow water and river
5.geocell can be used to support pipeline and sewer
6.geocell can be used to prevent landslide and to be used as compound walls to support loading
7.geocell can be used to be used in dependent walls,wharfs and bank and so on
8.geocell can be used to govern sand,beach,river bank and riverbed

         Road  Construction    Geocell                                               Geocell Retaining Walls

                           Slope Protection Geocell                                   Channel Protection Geocell

• Gruound Stabilisation
  Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement;working platforms in intermodal ports; airport runways.

• Retaining Wall
  Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls)
  for steep faces, walls and irregular topography

• Slope Pretection
  Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

• Load Support
  Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.

3D Geocell Grid Key Factors Influencing Type Selection:

1.Project Requirements:

 The specific application, such as slope protection, road reinforcement, or parking lot stabilization,

will dictate the best type of geocell.

  2. Performance Characteristics:

The choice depends on desired performance qualities like drainage, load distribution, and soil stabilization.

3. Site-Specific Conditions:
Factors like soil type and water management needs also influence the selection

Plastic HDPE Geocell Technical parameter:

Seam Peel Strength
Definition:
This refers to the strength of the weld between the geocell panels.
Classification:
Higher seam peel strengths are desirable, indicating a more robust and durable product. Manufacturers list these strengths as key specifications for their products, such as ≥1000 N, ≥1500 N, or ≥2000 N.

Geocell supporting installation tools

1.Butterfly key for quicker connection of HDPE gecell sections

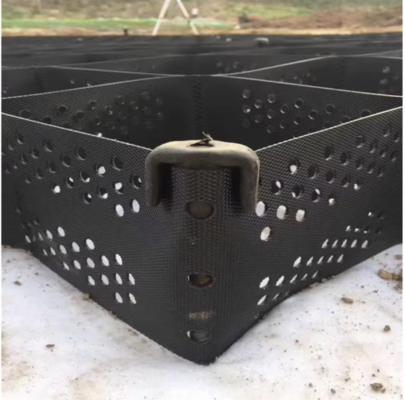

2.Anchor & stake clip for geocell
