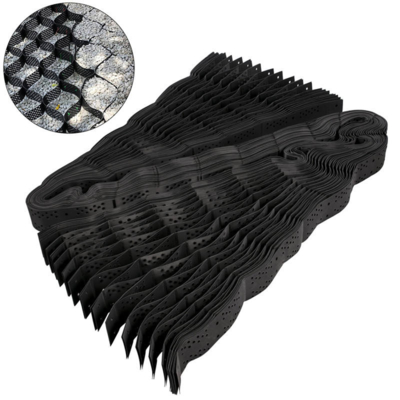

Smooth Textured 1.5mm Thickness 3D Cellular Confinement System HDPE Geocell Railway Subgrade Reinforcement

Smooth Textured 1.5mm Thickness 3D Cellular Confinement System HDPE Geocell Railway Subgrade Reinforcement

Do you know How Geocell works ?

The geocell's cellular design provides a powerful confinement system that prevents the lateral and vertical movement of the infill material. The primary mechanisms include:
Load distribution: The 3D structure spreads concentrated loads over a wider area, reducing stress on the weak underlying soil.
Lateral confinement: The stiff cell walls prevent the infill material from shifting sideways under load.
Increased shear strength: The confinement improves the shear strength of the soil, preventing deformation and settlement.

3D Honeycomb Road Geocell Different Types :

Based on Surface Texture

Smooth Geocells:
Characterized by a smooth surface, these are often used in applications

where reduced friction with the soil is desired.

Textured Geocells:
Feature a textured surface to enhance frictional resistance and soil-geocell interaction,

providing better soil confinement and stability.

Plastic HDPE Geocell Technical parameter:

Plastic HDPE Geocell Potential Applications:

         Road  Construction    Geocell                                               Geocell Retaining Walls

                           Slope Protection Geocell                                   Channel Protection Geocell

Gruound Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement;working platforms in intermodal ports; airport runways.

Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls)
for steep faces, walls and irregular topography

Slope Pretection
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Load Support
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.

Welcome to contact with Yixing Shenzhou HDPE GEOCELL

Email : amelie@geogrid.cn

Whatsapp : 0086 13815119816

Geocell supporting installation tools

1.Butterfly key for quicker connection of HDPE gecell sections

2.Anchor & stake clip for geocell
