Yellow Color Sheet Thickness 1mm Smooth Surface Without Hole 3D Honeycomb Road Geocell Highway Soft Foundation

Yellow Color Sheet Thickness 1mm Smooth Surface Without Hole 3D Honeycomb Road Geocell   Highway Soft Foundation

Description:

Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured

 from high densitypolyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the

 transport and installation on
construction site . The geocell nets will be filled with soils , granular, cements or other on-site infill materials

when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides .

3D Geocell Grid Key Factors Influencing Type Selection:

Project Requirements:
The specific application, such as slope protection, road reinforcement, or parking lot stabilization, will dictate the best type of geocell.
Performance Characteristics:
The choice depends on desired performance qualities like drainage, load distribution, and soil stabilization.
Site-Specific Conditions:
Factors like soil type and water management needs also influence the selection

Key Point Seam Peel Strength :

Definition:
This refers to the strength of the weld between the geocell panels.
Classification:
Higher seam peel strengths are desirable, indicating a more robust and durable product. Manufacturers list these strengths as key specifications for their products, such as ≥1000 N, ≥1500 N, or ≥2000 N.

Plastic HDPE Geocell Technical parameter:

3D Honeycomb Road Geocell Different Types :

Based on Surface Texture

Smooth Geocells:
Characterized by a smooth surface, these are often used in applications

where reduced friction with the soil is desired.

Textured Geocells:
Feature a textured surface to enhance frictional resistance and soil-geocell interaction,

providing better soil confinement and stability.

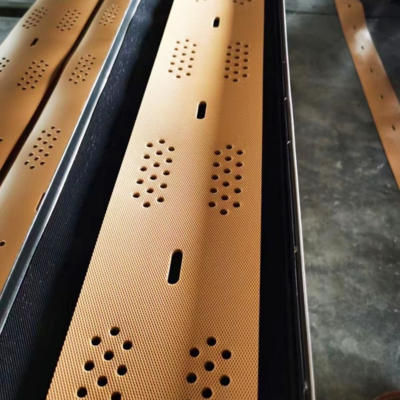

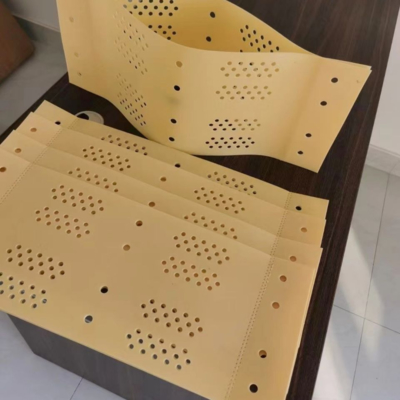

Based on Perforation
Non-perforated Geocells:
Offer higher strength and are used in applications requiring greater structural support.

Perforated Geocells:
Allow for water and air passage, which is beneficial in certain erosion control and soil stabilization projects where drainage is a key requirement.

3D HDPE Geocell Applying Area :

1.Be used for firm the roadbed of railroad;
2.Be used for firm highway soft foundation handling;
3.Be used for dike and retaining wall, which can bear load force;
4.Be used to harness the shoal water runway;
5.As pipeline and the sewer's propping up structure;
6.Be used for mixed type retaining wall that prevent the slope from falling down and bear load force;
7.Be used for independent wall, dock and breakwater;
8.Be used to harness the desert, beach and riverbed ,river bank

         Road  Construction    Geocell                                               Geocell Retaining Walls

                           Slope Protection Geocell                                   Channel Protection Geocell

• Gruound Stabilisation
  Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement;working platforms in intermodal ports; airport runways.

• Retaining Wall
  Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls)
  for steep faces, walls and irregular topography

• Slope Pretection
  Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

• Load Support
  Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.

Geocell supporting installation tools

1.Butterfly key for quicker connection of HDPE gecell sections

2.Anchor & stake clip for geocell
