UV Resistance PP or PET Woven Geotextile 200kN Geofabric for Road Construction

Brand Name:	SZ
Model Number:	SZWZ
MOQ:	10.000 square meter
Price:	$0.3-$2.0/SQM
Payment Terms:	,L/C,T/T,D/P,D/A,Western Union,MoneyGram
Supply Ability:	2 tons per day

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Geotextile Type:

Woven Geotextiles

Material:

PP Or PET

Feature:

Non-toxic,Eco-friendly,Reusable

Application:

Aircraft And Aeromodeling Runway

Weight:

100-800Gram

Fiber Type:

PP Flat Wire Or Twill

Color:

Black,brown,green

Width:

4-6m

Packaging Details:

Roll with paper coil inside and poly bag outside

Supply Ability:

2 tons per day

Highlight:

PET Woven Geotextile 200kN

UV Resistance PET Woven Geotextile

Product Description

200kN Geofabric UV Resistance PP or PET Woven Geotextile for Road Construction

Woven Geotextile performance parameters

1. Mechanical properties

· Breaking strength: longitudinal (MD) and transverse (TD) tensile strength can reach 4.5~35kN/m, and high-weight products can exceed 50kN/m.

· Tear strength: 0.17~1.25kN, suitable for complex geological conditions.

2. Functional indicators

· Permeability coefficient: 0.07~0.2mm pore size, vertical permeability coefficient of 10⁻¹~10⁻³ cm/s, meeting drainage needs.

· Corrosion resistance: acid and alkali resistance, ultraviolet (UV) resistance, microbial erosion resistance, life span up to 50 years.

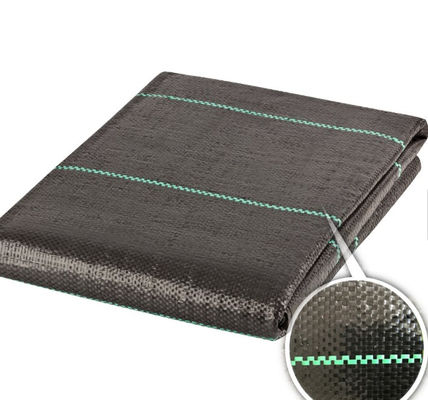

UV Resistance PP or PET Woven Geotextile 200kN Geofabric for Road Construction 0

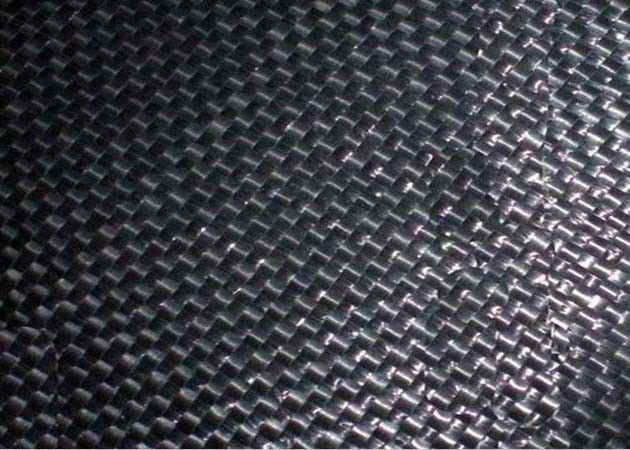

UV Resistance PP or PET Woven Geotextile 200kN Geofabric for Road Construction 2

Properties	Test Method	Unit	WG100/100PET	WG200-200PET	WG300-100PET
Strength@Ultimate(MD)	ASTM D4595	kN/m	100	200	300
Strength@Ultimate(TD)	ASTM D4595	kN/m	100	200	100
Elongation MD	ASTM D4595	%	10±2	10±2	10±2
Strength@5% Strain(MD)	ASTM D4595	kN/m	42	85
CBR Strength	EN ISO 12236	kN	7.5	10.6	8.9
Drop Test	EN 918	mm	11	10	11
Creep Reduced Strength(MD)	ASTM D 5262	kN/m	69	140	205
Long Term Design Strength(MD)	GR-GT7	kN/m	57	118	170
Apparent Open Size	ASTM D4751	mm	≤0.55	≤0.55	≤0.55
Flow Rate	ASTM D4491	L/m2/s	15-20	15	15
Roll Width	-	m	5.2	5.2	5.2
Roll Length	-	m	100	100	100

Application scenarios of polyester woven geotextile
Polyester woven geotextile is widely used in many fields due to its high strength, corrosion resistance and water permeability.
Civil engineering reinforcement and protection

1. Road and railway subgrade reinforcement
· Used to repair cracks in flexible pavements, disperse loads and prevent reflective cracks.
· Provide reinforcement in soft soil foundations or pile cap areas to enhance the bearing capacity of the subgrade.

2. Slope and dam protection
· Anti-scouring and erosion protection of river embankments and reservoir slopes to resist water flow impact.
· As a reinforcement material in retaining wall backfill to improve structural stability.

Drainage and filtration system

1. Soil drainage layer

· Separate sand and clay to prevent blockage, suitable for roadbed, tunnel and other projects.

· As a drainage layer around the tunnel, it reduces the lining pressure.

2. Drainage in special scenarios

· Liquid drainage in mines and landfills to avoid environmental pollution.

· Drainage and anti-filtration in reclamation and coastal tidal flat projects.

Environmental protection and ecological engineering

1. Ecological slope protection and greening

·Support vegetation growth, used for artificial slope protection and ecological restoration, with drainage and soil protection functions.

·Prevent soil erosion, suitable for steep slopes and erosion-prone areas.

2. Groundwater control

·Regulate soil moisture to prevent freezing damage and liquefaction risks.

UV Resistance PP or PET Woven Geotextile 200kN Geofabric for Road Construction 3

UV Resistance PP or PET Woven Geotextile 200kN Geofabric for Road Construction 5

For more details, pls contact Yixing Shenzhou.
