PP PET Woven Geotextile Road Stabilization Fabric 20-1000KN High Strength

Brand Name:	SZ
Model Number:	SZWZ
MOQ:	10.000 square meter
Price:	$0.3-$2.0/SQM
Payment Terms:	,L/C,T/T,D/P,D/A,Western Union,MoneyGram
Supply Ability:	2 tons per day

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Geotextile Type:

Woven Geotextiles

Material:

Feature:

Non-toxic,Eco-friendly,Reusable

Application:

Agricultural Cultivation

Weight:

100-800Gram

Fiber Type:

PP Flat Wire Or Twill

Color:

Black,brown,green

Width:

4-6m

Packaging Details:

Roll with paper coil inside and poly bag outside

Supply Ability:

2 tons per day

Highlight:

ET Woven Geotextile Road Stabilization

PET Woven Geotextile High Strength

Product Description

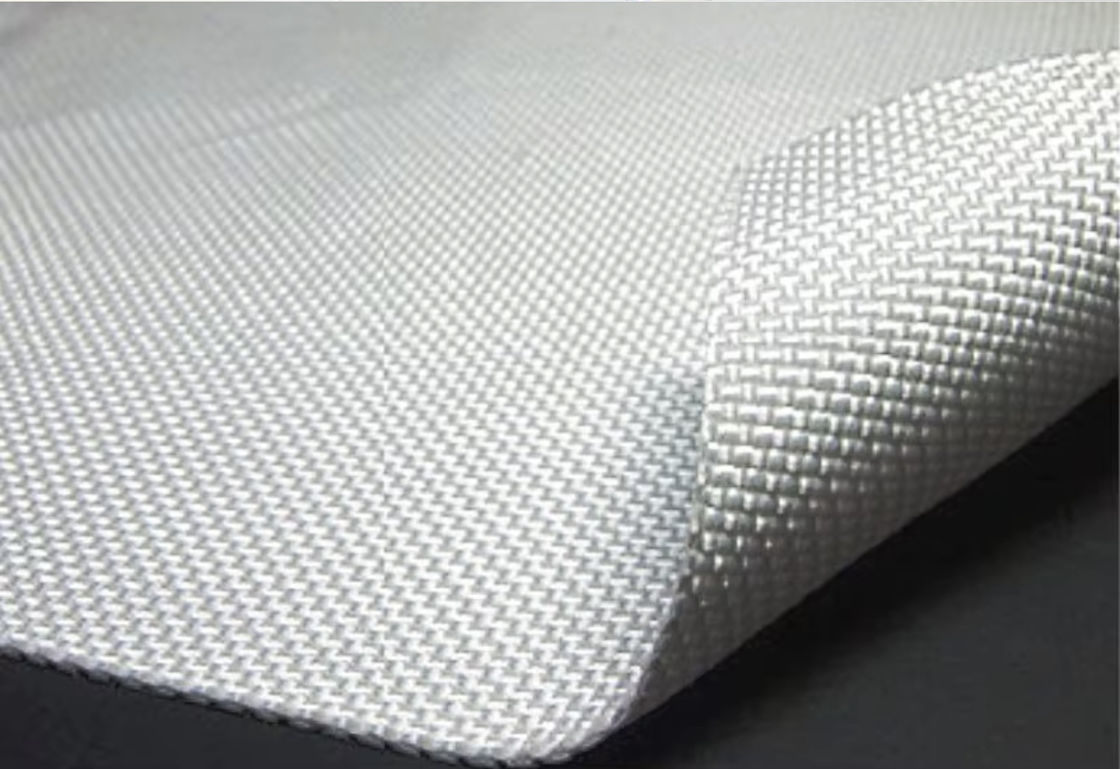

High Strength PET Woven Geotextile Road Stabilization Fabric 20 - 1000 KN

Pet Woven Geotextile Fabric is woven geo fabric made from high tenacity, low elongation material of multifilament polyester yarns to form a stable structure. BPM brand pet woven geotextile fabric is woven and blended by individual multifilament yarns woven together into a stable fabric structure with a superior combination of mechanical and hydraulic properties. Our pet woven geotextile fabric series has excellent resistance to biological and chemical environments normally found in soils and are stable against short-term exposure to ultraviolet radiation. The woven geotextile fabric is widely used for reinforcement of embankments, retaining structures, steep slopes, linear constructions, landfills, waste deposits, etc.

Material properties and types

1. Basic materials

·Woven from polyester fiber (Polyester/PET), some products are combined with polypropylene (PP) to enhance performance.

·It is divided into two processes: filament weaving and staple needle punching. Filament products have higher strength, while staple needle punching focuses on filtering performance.

2. Weight and specifications

·Weight range: 100g/m²~1200g/m², common specifications are 200g, 300g, 500g, etc.

·Width: 1m~6m, customizable, single roll length is usually 50~100 meters.

PET WOVEN Geotextile Specification

Property	Unit	100-50	300-50	500-50	600-50	1200-50
Ultimate Tensile Strength MD	KN/m	100	300	500	600	1200
Ultimate Tensile Strength CD	KN/m	50	50	50	50	50
Strain at short term strength	%	10	12	12	12	12
Elongation	%	30	30	30	30	30
Apparent Opening Size	mm	0.15	0.15	0.15	0.15	0.15
UV resistance ( Retained 500 Hours)	%	70	70	70	70	70
Width	m	5.2	5.2	5.2	5.2	5.2
Height	m	100	100	100	100	75
Roll weight	Kg	140	320	480	580	810

Main application areas

1. Engineering reinforcement and protection

· Road and railway subgrade reinforcement to prevent soil subsidence and cracks.

· River embankment and reservoir slope protection to resist water erosion.

2. Drainage and filtration

· Laying soil drainage layer to separate sand and clay to prevent blockage.

· Liquid drainage in mines and landfills.

3. Special scenarios

· Groundwater control, ecological slope protection and greening to support vegetation growth.

PP PET Woven Geotextile Road Stabilization Fabric 20-1000KN High Strength 0

Advantages and certification

1. Technical advantages

·Lightweight design, convenient construction, and adaptable to complex terrain.

·Long-term stability and strong anti-deformation ability.

2. Quality certification

·ISO 9001 and ISO 14001 certified, some products meet international engineering standards.
