Coastal Embankment Reinforcement Uniaxial Geogrid 750 / 100 KN Woven Coated Polyester Geogrid

Brand Name:	SZ
Model Number:	SZPES
MOQ:	10,000 square meter
Price:	$0.3-$2.0/SQM
Supply Ability:	30.000 Square Meters per Day

Detail Information

Product Description

Detail Information

Place of Origin:

JIANGSU,CHINA

Certification:

CE,ISO

Product Name:

Polyester Geogrid

Application:

Coastal Embankment Reinforcement

Coating:

Woven,PVC,SBR

Tensile Strength:

700/100 Kn/m

Elongation:

> 10%

Type:

Uniaxial

Mesh Size:

50.8*50.8

Width:

1-6m

Packaging Details:

Packed in Roll Or customized packing as your request.

Supply Ability:

30.000 Square Meters per Day

Highlight:

woven coated polyester geogrid

woven coated uniaxial geogrid

Product Description

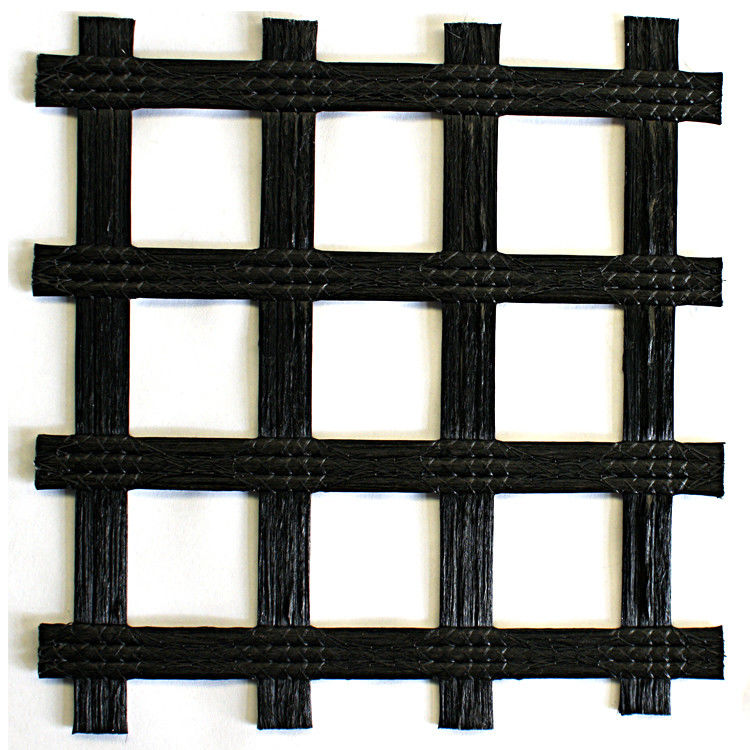

Coastal Embankment Reinforcement Uniaxial Geogrid 750 / 100 KN Woven Coated Polyester Geogrid

About Polyester Geogrid

Warp Knitted Polyester Geogrid (PET geogrid) is woven by high tenacity polyester filament as the raw material with stitch bonding, and coated with black polyvinyl chloride (PVC).

Properties

1. High intension, high tenacity, high occlusive force with soil or gravel, erosion-resistant, water drainage, light weight

2. Reinforce soft soil roadbed, rib side slope of embankment, enhance isolation, inhibit ground deformation,prevent crack by reflection, increase strength of roadbed.

Type: PET20-20, PET30-30, PET40-40, PET50-50, PET60-60, PET80-80, PET100-100, PET120-120, PET150-150,PET50-30, PET60-30, PET80-30, PET100-30, PET120-30, PET150-30

MAX PET950

Roll width: 2m, 3m, 4m, 5m, 6m

Roll length: 50m, 100m, 150m

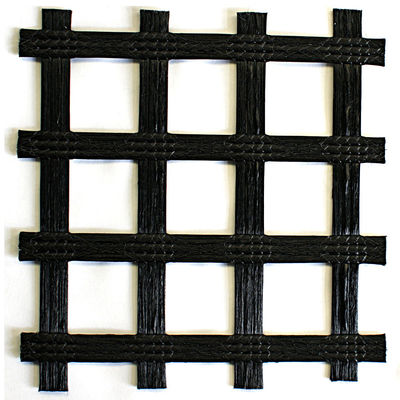

Coastal Embankment Reinforcement Uniaxial Geogrid 750 / 100 KN Woven Coated Polyester Geogrid 0

Polyester Geogrid Application

Technical Specification

Physical Property	Unit	100/30	160/30	200/30	300/30
Tensile Strength MD	kN/m	100	160	200	300
Tensile Strength CMD	kN/m	30	30	30	30
Elongation MD	%	10	10	10	10
Tensile Strength @ 5% strain	kN/m	50	80	100	150
Unit Weight (±5%)		193	224	283	395
Creep Reduction Factor 120 Year Design Life		1.42	1.42	1.42	1.42
Creep Limited Strength 120 Year Design Life	kN/m	70.4	112.7	140.8	211.3
Installation Damage Reduction
Type 3 Backfill (sand, silt, clay)		1.05	1.05	1.05	1.05
Type 2 Backfill (sandy gravel)		1.10	1.10	1.10	1.10
Type 1 Backfill(gravel)		1.15	1.15	1.15	1.15
Durability Reduction Factor		1.05	1.05	1.05	1.05
LTDS (120-year design life)
Type 3 Backfill (sand, silt, clay)	kN/m	63.9	102.2	127.8	191.6
Type 2 Backfill (sandy gravel)	kN/m	61.0	97.6	121.9	183.3
Type 1 Backfill(gravel)	kN/m	58.3	93.3	116.6	175.4

SHENZHOU® is a geogrid reinforcement for soil. These high performance geogrids are constructed of high molecular weight and high tenacity polyester yarns utilizing a complex knitting process and polymeric coating to provide superior engineering properties. Yarns are precision knitted into a dimensionally stable, uniform network of apertures providing significant tensile reinforcement capacity. SHENZHOU is engineered to be mechanically and chemically durable, in both the harsh construction installation phase and in aggressive soil environments

Customization options

Customized logo (Min. order: 20,000 square meters)

Customized packaging (Min. order: 20,000 square meters)

Graphic customization (Min. order: 20,000 square meters)

Welcome to visit Yixing Shenzhou Geosynthetic Factory.
