High Temperature Resistant Anti-Cracking 100-100 KN/M Glassgrid Bitumen Coating Reinforced Asphalt Pavement

High Temperature Resistant Anti-Cracking 100-100 KN/M Glassgrid Bitumen Coating Reinforced Asphalt Pavement

100-100 KN/M Glassgrid  Product Features:

- Biaxial Uniform Tensile Strength: ≥100KN/m tensile strength in both warp and weft directions,

efficiently disperses pavement stress, resists deformation under heavy loads, and fundamentally

suppresses crack generation and propagation.

- Premium Bitumen Coating Integration: Full-coverage modified bitumen coating ensures perfect

bonding with hot asphalt mixture, stable interlayer performance, no slipping, no peeling and no aging

during construction and service.

- Low Elongation & High Rigidity: Break elongation ≤3%, maintaining high structural stability,

effectively preventing pavement rutting and uneven settlement, keeping asphalt pavement flat for a long term.

- Wide Temperature Resistance: Stable performance under -40℃ to 200℃, compatible with high-temperature

hot asphalt paving construction, and adaptable to harsh outdoor weather conditions with UV & acid-alkali resistance.

- Long-Lasting Durability: High-quality fiberglass substrate with no creep, service life up to 20+ years, highly matching the design life of asphalt pavement structures.

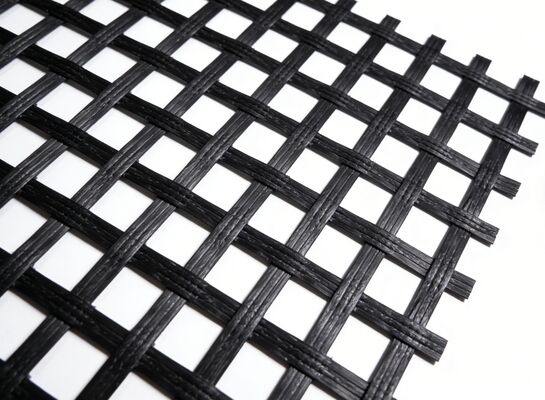

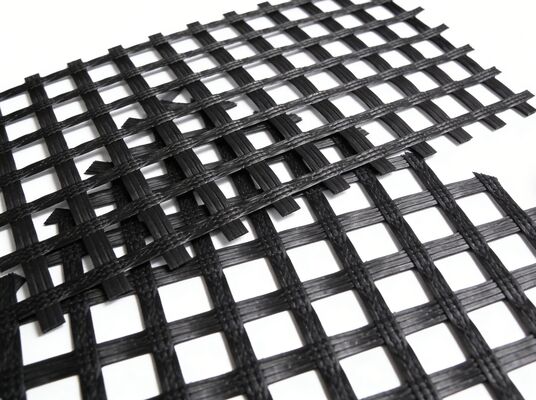

Reinforcement Fiberglass Geogrid​ ​ Key Properties:

• Aperture Size:

Typically ranges from 20x20 mm to 40x40 mm, optimized for optimal interlock with common aggregate sizes.

• Coating:

Coated with a polymeric material (e.g., PVC) to protect the glass fibers from abrasion and

damage during installation and to provide UV resistance.

Reinforcement Fiberglass Geogrid​  Specification:

Before Coated Bitumen                                            After Coated Bitumen

Mesh Size 25.4x25.4mm                                           Mesh Size 12.8x 12.8 mm

100-100 KN/M Glassgrid  Application Scenarios :

- New construction of highways, municipal roads, national & provincial highways

- Old asphalt pavement overlay & white-to-black reconstruction projects

- Bridge deck pavement, road widening and busy intersection sections

- Airport runways, port freight roads, heavy-load parking lots

- Industrial zone roads, highway ramp and routine maintenance projects

Yixing Shenzou Geosynthetics more geotechnical material solutions,

Welcome to contact Yixing Shenzhou Amelie Dai

Email : amelie@geogrid-cn.com

Mob/Whatsapp : 0086 13815119816

To Get Free Sample!!!

Certifications & Quality Assurance:

- ISO 9001 Quality Management System Certification

- CE Certification, SGS Third-Party Testing Report

- Full-process quality control & factory direct supply

- Professional technical support and full-chain after-sales service
