Low Creep Uniaxial 200-50 KN/M PVC Coated Polyester Geogrid Retaining Wall Steep Slop Road Base

Name: Low Creep Uniaxial 200-50 KN/M PVC Coated Polyester Geogrid Retaining Wall Steep Slop Road Base
Brand: Shenzhou Earth Working Material Co. Ltd
SKU: Polyester Geogrid
Price: 0.30 USD
Availability: InStock

Brand Name:	SZ
Model Number:	Polyester Geogrid
MOQ:	10.000 m2
Price:	$0.3-$2.0/SQM
Payment Terms:	T/T,L/C
Supply Ability:	30.000 SQM PER DAY

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

Low Creep Uniaxial 200-50 KN/M PVC Coated Polyester Geogrid Retaining Wall Steep Slop Road Base

Usage:

Soil Reinforcement

Process:

Woven Coated Warp Knitted Coated SBR/PVC

Application:

Retaining Wall Steep Slop Road Base

Mesh Size:

25.4x25.4mm / 50.8x50.8mm

Tensile Strength:

200-50 KN/M

Roll Size:

3.95x100M / 5.2x100M Or 50M

Package:

By Roll With Woven Bags

Packaging Details:

Packed in double layer woven bags to ensure smooth arrival and avoid rough handle.

Supply Ability:

30.000 SQM PER DAY

Highlight:

PVC coated polyester geogrid

Uniaxial geogrid for retaining walls

Low creep geogrid for steep slopes

Product Description

Low Creep Uniaxial 200-50 KN/M PVC Coated Polyester Geogrid Retaining Wall Steep Slop Road Base

Uniaxial 200-50 KN/M PVC Coated Polyester Geogrid Product Overview:

This woven polyester geogrid combines high‑tenacity PET yarns with a protective PVC coating,

resulting in a reinforcement solution that offers:

200 KN/m MD tensile strength – exceptional load resistance

50 KN/m CMD strength – reliable transverse integrity

Low creep – ideal for permanent structures

High junction efficiency – no weak points under stress

Chemical & UV resistance – thanks to the PVC coating

Whether you’re stabilizing a high‑speed rail embankment or building a mechanically

stabilized earth (MSE) wall, this geogrid provides the reinforcement you can trust.

Uniaxial 200-50 KN/M PVC Coated Polyester Geogrid Key Specifications :

Parameter Value

Type Uniaxial, Woven Polyester

Coating PVC (Polyvinyl Chloride)

MD Tensile Strength ≥ 200 KN/m

CMD Tensile Strength ≥ 50 KN/m

Elongation at Break (MD) ≤ 13%

Roll Width 2.0 m – 6.0 m (custom)

Roll Length 50 m / 100 m (custom)

Standard ASTM D6637, ISO 10319

Yixing Shenzhou Polyester Geogrids:

1.Uniaxial Polyester Geogrids:

Stronger in one direction, used for reinforcement in specific directions, such as retaining walls.

Popular Types : 100-30 KN/M ; 200-30 KN/M ; 200-50 KN/M ; 250-50 KN/M ; 200-100 KN/M

2. Biaxial Polyester Geogrids:

Strong in both directions, suitable for applications requiring reinforcement in all directions, like embankments and slopes.

Hot Sell Models : 80-80 KN/M ; 120-120KN/M ; 200-200KN/M； 500-500KN/M

Polyester Geogrids Coating PVC Or Coated SBR

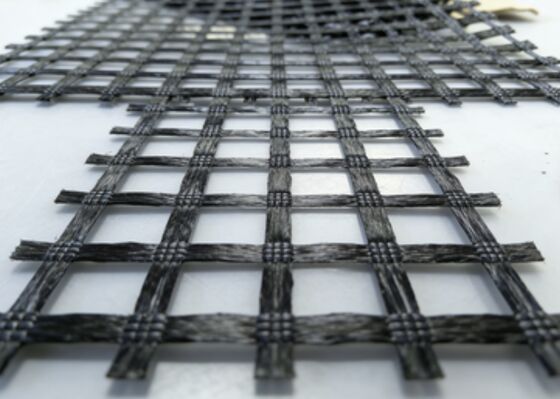

Low Creep Uniaxial 200-50 KN/M PVC Coated Polyester Geogrid Retaining Wall Steep Slop Road Base 0

Packing and Shipping

Selling packing: Customers' company Logo mark can be designed and added.
Outer packing: Packed in double layer woven bags to ensure smooth arrival and avoid rough handle.
Delivery Detail: Winthin 10 days after received your deposit
Delivery Detail: 100,000 square meters can be finished within 3 days
Delivery Time: 3-20 days after confirming order, detail delivery date should be decided according to

production season and order quantity.

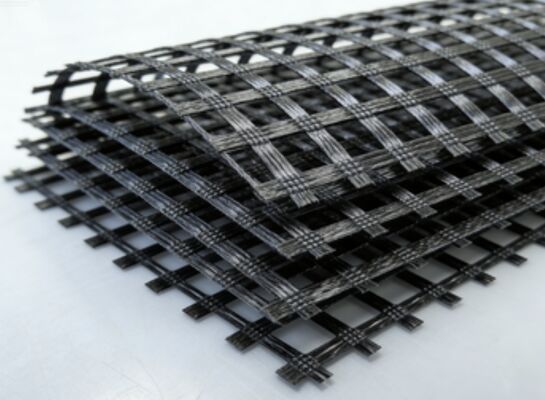

Low Creep Uniaxial 200-50 KN/M PVC Coated Polyester Geogrid Retaining Wall Steep Slop Road Base 2

Polyester biaxial geogrids are used in applications various directions across a plane:

Base Reinforcement of Unpaved and Paved Roads:

This is the most common application. It is placed at the interface between the subgrade and

the base course aggregate to create a stiffer, more stable working platform and to extend the service life of the road.

Parking Lots and Construction Platforms:

Used to stabilize weak soils, allowing for construction traffic and providing a stable foundation for asphalt paving.

Railway Track Bed Stabilization:

Placed under the ballast layer to reduce settlement, confine the ballast, and reduce maintenance cycles.

Foundation Mattresses and Embankments:

Used to create a stable, reinforced platform over very soft soils for embankment construction.

Landfill Liners and Caps: Sometimes used to reinforce the soil cover over landfill cells

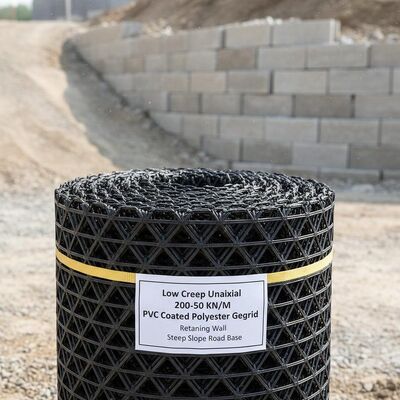

Low Creep Uniaxial 200-50 KN/M PVC Coated Polyester Geogrid Retaining Wall Steep Slop Road Base 3

Why Choose Our PVC Coated Polyester Geogrid?

1. High Strength – 200 KN/m MD
One of the highest tensile ratings available in a uniaxial woven geogrid.

Perfect for projects with extreme loading conditions or limited reinforcement space.

2. Advanced PVC Coating
Fully encapsulates polyester yarns, protecting against moisture, acidic/alkaline soils, and UV radiation.

Increases friction angle between geogrid and backfill for superior anchorage.

Extends service life in aggressive environments (landfills, coastal areas, industrial sites).

3. Low Creep & Long‑Term Performance
Polyester base with low creep coefficient ensures reinforcement remains effective for the design life

of the structure (typically 50–100 years).

Reduces long‑term deformation in embankments and retaining walls.

4. Superior Junction Integrity
Woven construction with secondary PVC coating locks fiber intersections.

No slippage or node failure – the grid behaves as a single, cohesive reinforcement layer.

5. Easy Installation

Flexible rolls conform to site contours.

Lightweight yet strong, allowing fast deployment without heavy equipment.

Compatible with standard overlap and connection methods.

Yixing Shenzou Geosynthetics more geotechnical material solutions,

Welcome to contact Yixing Shenzhou Amelie Dai

Email : amelie@geogrid-cn.com

Mob/Whatsapp : 0086 13815119816

To Get Free Sample!!!
