| Brand Name: | SZ |
| Model Number: | SZGT |
| MOQ: | 100000 Sqaure Meter |
| Price: | $0.3-$2.0/SQM |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 20000 Square meter per day |

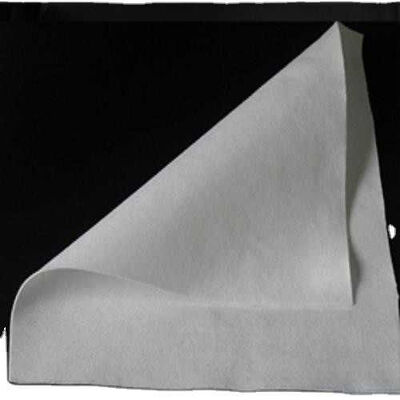

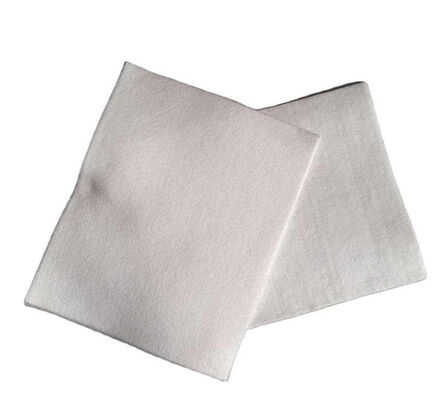

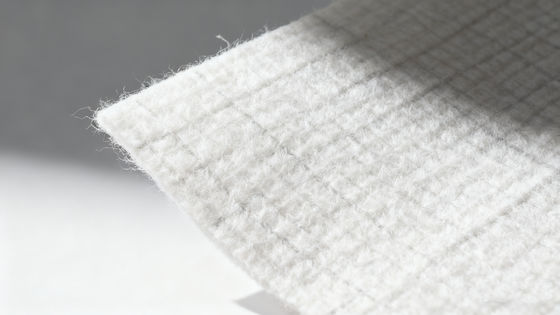

Pure PP 400g Polypropylene Nonwoven Geotextile Separation Layer Subgrade Aggregate Base For Road Construction
Service Life for Polypropylene Nonwoven Geotextile:
The service life of polypropylene geotextiles is significantly affected by the environment. The core conclusion is: 5-10 years in normal environments, extended to 15-20 years with proper protection (such as burial in the ground and protection from sunlight). Exposure to sunlight only lasts 1-3 years.
Key Influencing Factors: UV Light: Polypropylene is sensitive to UV rays. When exposed to sunlight without protection, UV rays accelerate fiber aging and degradation.
![]()
![]()
Operating Environment: Longer lifespan is significantly extended when buried in soil, underwater, or protected by an outer layer (such as a geomembrane or concrete). Acidic, alkaline, high-temperature, and chemically corrosive environments shorten lifespan.
Product Quality: Geotextiles made from high-quality raw materials (high-purity polypropylene) and standardized production offer enhanced aging resistance and a longer lifespan.
Key measures to extend service life:
Avoid prolonged exposure to the open air. Cover with soil, gravel, or other protective layers promptly after construction.
For special environments (such as saline-alkali land and around chemical plants), use specialized polypropylene geotextiles with anti-aging agents and corrosion-resistant modifications.
During construction, avoid scratches and tears from sharp objects to minimize accelerated local aging caused by material damage.
400g Polypropylene Non Woven Geotextile Application & Function :
Staple fibers needle punched non woven geotextile Parameters
|
No. |
Item |
Parameters |
||||||||||
|
Nominal strength(kN/m) |
7 |
9 |
11 |
15 |
19 |
22 |
25 |
28 |
34 |
40 |
45 |
|
|
1 |
Breaking strength≥(kN/m) |
7 |
9 |
11 |
15 |
19 |
22 |
25 |
28 |
34 |
40 |
45 |
|
2 |
Elongation at break(%) |
40——100 |
||||||||||
|
3 |
Tearing strength≥(kN) |
0.21 |
0.25 |
0.31 |
0.40 |
0.50 |
0.58 |
0.67 |
0.75 |
0.85 |
1.00 |
1.30 |
|
4 |
CBR puncture resistance ≥(kN) |
1.1 |
1.4 |
1.7 |
2.3 |
2.90 |
3.3 |
3.8 |
4.2 |
5.4 |
6.2 |
7.8 |
|
5 |
Strong Grip≥(kN) |
0.4 |
0.5 |
0.6 |
0.8 |
1.0 |
1.25 |
1.5 |
1.7 |
2.15 |
2.8 |
3.7 |
|
6 |
Thickness≥(mm) |
1.0 |
1.2 |
1.5 |
1.9 |
2.2 |
2.6 |
3.0 |
3.3 |
4.0 |
4.5 |
6.0 |
|
7 |
Equivalent Pore size O90( O95)(mm) |
0.07-0.3 |
||||||||||
|
8 |
Vertical permeability coefficient(cm/s) |
1.0×(100—10-2) |
||||||||||
|
9 |
Anti-ultraviolet intensity retention rate≥(%) |
80% |
||||||||||
|
10 |
Unit Weight≥(g/m2) |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
500 |
600 |
800 |
|
11 |
Unit Weight Tolerance(%) |
±5 |
±4 |
±3 |
||||||||
|
12 |
Width Tolerance(%) |
±0.05 |
||||||||||
