200gsm Polypropylene Nonwoven Geotextile For Road Construction Slope Protection And Water And Soil Loss

Brand Name:	SZ
Model Number:	150-800gram/sqm
MOQ:	20GP
Price:	$0.3-$2.0/SQM
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	6-8 Ton Per Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO / CE

Product Name:

200gsm Polypropylene Nonwoven Geotextile

Application:

Road Construction Slope Protection And Water And Soil Loss

Function:

UV-resistant And High Puncture Resistance

Type:

Nonwoven

Elongation:

50-90%

Color:

White/Black

Roll Length:

50-100m

Weight:

400GSM

Packaging Details:

By Roll With Woven Bag

Supply Ability:

6-8 Ton Per Day

Highlight:

200gsm polypropylene geotextile for road construction

nonwoven geotextile for slope protection

polypropylene geotextile for soil loss prevention

Product Description

200gsm Polypropylene Nonwoven Geotextile For Road Construction Slope Protection And Water And Soil Loss

Product advantages

Good permeability, under the pressure of earthwork, can still maintain good permeability; With polyester, polypropylene and other chemical fibers as raw materials, acid and alkali resistance, no corrosion, no insects, anti-oxidation; Light weight, low cost, simple construction; With excellent filtration, drainage, isolation, reinforcement, protection performance.

Name	Geotextile
Color	Customized
Weight (gsm)	100-800 gsm, customized
Size (m/roll)	Customized
Material	PET, PP, customized
Type	Nonwoven, woven
Usage	Civil construction projects

200gsm Polypropylene Nonwoven Geotextile For Road Construction Slope Protection And Water And Soil Loss 0

Item from	Nominal breaking strength/(KN/m)
	3	5	8	10	15	20	25	30	40
Longitudinal and transverse rupture strength/(kN/m)	3.0	5.0	8.0	10.0	15.0	20.0	25.0	30.0	40.0
Elongation% corresponding to nominal breaking strength	20-100	20-100	20-100	20-100	20-100	20-100	20-100	20-100	20-100
Breaking strength/kn	0.6	1.0	1.4	1.8	2.5	3.2	4.0	5.5	7.0
Mass deviation rate per unit area/%	±5	±5	±5	±5	±5	±5	±5	±5	±5
Width deviation rate/%	-0.5	-0.5	-0.5	-0.5	-0.5	-0.5	-0.5	-0.5	-0.5
Thickness deviation rate/%	±10	±10	±10	±10	±10	±10	±10	±10	±10
Equivalent aperture O90(O95)/mm	0.07-0.20	0.07-0.20	0.07-0.20	0.07-0.20	0.07-0.20	0.07-0.20	0.07-0.20	0.07-0.20	0.07-0.20
Vertical permeability coefficient/(cm/s)	kx(10-1--10-3) Among them: k=1.0-9.9
Vertical and horizontal tear strength/kN	0.10	0.15	0.20	0.25	0.40	0.50	0.65	0.80	1.00
Acid and alkali resistance (strength retention rate)/%	80	80	80	80	80	80	80	80	80
Oxidation resistance {strength retention rate}/%	80	80	80	80	80	80	80	80	80
UV resistance (strength retention)/%	80	80	80	80	80	80	80	80	80

Main use of YIXING SHENZHOU GEOTEXTILE

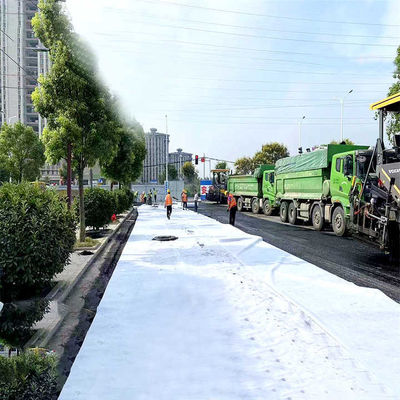

1 Highway and railway tunnel buffer layer. 2 soft foundation reinforcement treatment, slope protection; pavement anti-reflection crack structure layer; drainage system; green isolation belt. 3 Haiti, river embankment, lake lifting project; Reservoir reinforcement project; Reclamation project; Hydropower station project; Flood prevention and emergency rescue. 4 highway pavement maintenance. 5 Cooperate with other materials (mainly asphalt or plastic film) to form an impermeable barrier in the soil layer (mainly use dry road resurfacing, repair, etc.)

200gsm Polypropylene Nonwoven Geotextile For Road Construction Slope Protection And Water And Soil Loss 2

200gsm Polypropylene Nonwoven Geotextile For Road Construction Slope Protection And Water And Soil Loss 3

200gsm Polypropylene Nonwoven Geotextile For Road Construction Slope Protection And Water And Soil Loss 4

200gsm Polypropylene Nonwoven Geotextile For Road Construction Slope Protection And Water And Soil Loss 6
