500 Gsm Black Short fiber Polypropylene Nonwoven Geotextile UV-resistant and High Puncture Resistance

500 Gsm Black Short fiber Polypropylene Nonwoven Geotextile UV-resistant and High Puncture Resistance

Brand Name: SZ
Model Number: 150-800gram/sqm
MOQ: 20GP
Price: $0.3-$2.0/SQM
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 6-8 Ton Per Day
Detail Information
Place of Origin:
China
Certification:
ISO / CE
Product Name:
500 Gsm Black Short Polypropylene Nonwoven Geotextile
Application:
Land Reclamation Project
Function:
UV-resistant And High Puncture Resistance
Type:
Nonwoven
Elongation:
50-90%
Color:
White/Black
Roll Length:
50-100m
Weight:
400GSM
Packaging Details:
By Roll With Woven Bag
Supply Ability:
6-8 Ton Per Day
Highlight:

500 GSM black polypropylene geotextile

,

UV-resistant nonwoven geotextile fabric

,

high puncture resistance geotextile material

Product Description

500 Gsm Black Short fiber Polypropylene Nonwoven Geotextile UV-resistant and High Puncture Resistance

Geotextile is an engineering material widely used in civil engineering, ecological restoration and environmental protection. It is usually made of synthetic fibers and has good water permeability, strength and durability. The following is a detailed introduction to the definition, classification, characteristics, application and construction precautions of geotextile.



Geotextile is based on synthetic fibers, has strong water permeability and high tensile strength, can isolate, reinforce and filter soil, and is widely used in road reinforcement, dam anti-seepage, landfill isolation and other scenarios. This lightweight and durable material can reduce soil erosion by 60%, extend the life of the project, and become the core solution for stability and environmental protection in civil engineering.

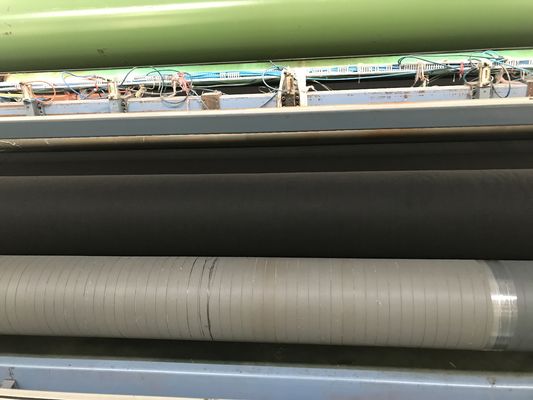

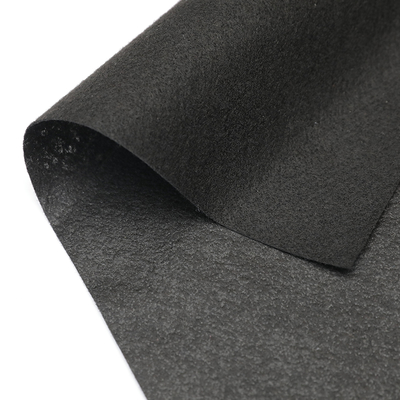

500 Gsm Black Short fiber Polypropylene Nonwoven Geotextile UV-resistant and High Puncture Resistance 0500 Gsm Black Short fiber Polypropylene Nonwoven Geotextile UV-resistant and High Puncture Resistance 1



Non-woven Geotextile Technical Parameter (GB standard)
Item
unit
Standard Specification
100
150
200
250
300
350
400
450
Thickness≥
mm
0.9
1.3
1.7
2.1
2.4
2.7
3
3.3
width Deciation
%
0.5
Breaking strength
KN/M
2.50
4.50
6.50
8.00
9.50
11.00
12.50
14.00
Breaking Elongation
%
25-100
Weight Tolerance
g/m²
-8
-8
-8
-8
-7
-7
-7
-7
CBR Tear Strength≥
KN
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
Tear Strength≥
KN
0.08
0.12
0.16
0.2
0.24
0.28
0.33
0.38
Vertical Permeability
N/5cm
Kx(10﹣¹-10﹣³)
EOS 090
mm
0.07-0.2

Classification and Features of 500 gsm Black short fiber polypropylene nonwoven Geotextile

Geotextiles are mainly divided into three categories according to production process, composite form and fiber type: non-woven geotextiles (such as staple needle punched, filament spunbond), woven geotextiles (such as woven, knitted) and composite geotextiles (such as cloth film composite, warp knitted composite). The specific subdivisions cover functional products such as anti-seepage, drainage, and reinforcement.

‌1. Classification by production process ‌ ‌Non-woven geotextiles ‌ ‌Staple needle punched geotextiles: Made of polyester/polypropylene staple fibers, the fibers are randomly arranged and are suitable for scenes such as slope protection and roadbed isolation. ‌ ... ‌‌

‌2. Classification by composite form ‌‌Composite geotextile ‌‌Such as "one cloth and one membrane" or "two cloths and one membrane", combined with anti-seepage membrane and non-woven fabric, used for landfill and tunnel anti-seepage. ‌‌‌‌

‌Warp knitted composite geotextile ‌‌Glass fiber reinforced, outstanding tear resistance, suitable for soft soil foundation reinforcement. ‌‌‌‌

3. Classification by fiber material ‌‌Polyester (PET) geotextile ‌‌: High temperature resistant (-40℃~120℃), suitable for high temperature environment engineering. ‌‌

‌Polypropylene (PP) geotextile ‌‌: Corrosion-resistant, cost-effective, widely used in drainage systems.

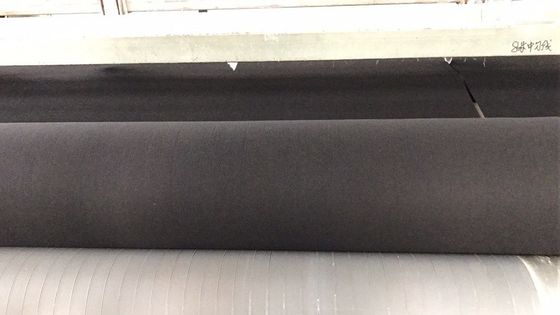

500 Gsm Black Short fiber Polypropylene Nonwoven Geotextile UV-resistant and High Puncture Resistance 2

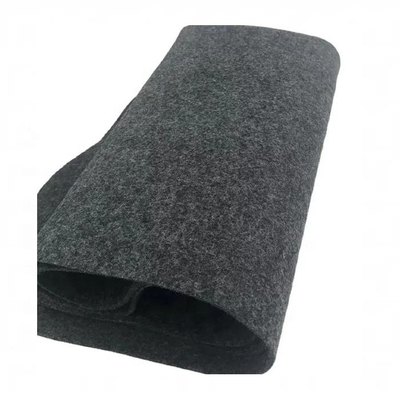

500 Gsm Black Short fiber Polypropylene Nonwoven Geotextile UV-resistant and High Puncture Resistance 3



Product specifications and standards



1. Common parameters

  • Weight range: 100g/m²~800g/m², width 1m~6m, roll length 50m~1000m.
  • Thickness: 0.3mm~20mm, customized according to project requirements.



2. Industry standards

  • Chinese standard: JT/T992.1-2015 (highway engineering geotextile standard).
  • International certification: ISO9001, ISO14001, etc.

Yixing Shenzhou Partial Typical engineering cases for PP Nonwoven Geotextile used in Railway project

1. Suiyu Railway Test Section

Our country used geosynthetics in ballastless track for the first time, verifying the feasibility of polypropylene geotextile in the sliding layer.

2. Beijing-Shanghai High-speed Railway and Wuhan-Guangzhou High-speed Railway

CRTSⅠ/Ⅱ type slab track is widely used, and polypropylene geotextile is used as the key material of the isolation layer and sliding layer.

3. Zhengzhou-Xuzhou Passenger Dedicated Line

CRTSⅢ type track slab was used on a large scale for the first time, with 700g/㎡ high-strength polypropylene geotextile, marking the maturity of domestic production technology.
