Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification

Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification

Brand Name:	SZ
Model Number:	FG
MOQ:	10,000 Square Meter
Price:	$0.3-$2.0/SQM
Payment Terms:	L/C,T/T
Supply Ability:	100,000 Square Meters per Week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Product Name:

Fiberglass Reinforcement Geogrid

Application:

Asphalt Paving Reinforcement

Function:

Reinforcing Glass Grid

Material:

Fiberglass Yarn

Coating:

Bitumen & Asphalt Geogrid

Tensile Strength:

30kN/m-300kN/m

Elongation Rate:

<=4%

Roll Measure:

1-6m Width , 50-200m Length

Mesh Size:

25.4*25.4mm 12.7*12.7 50.8*50.8

Standard:

ASTM ISO

Packaging Details:

By roll, paper pipe + black PE shrinkage membrane + woven bag ( waterproof & UV resistance)

Supply Ability:

100,000 Square Meters per Week

Highlight:

low elongation fiberglass geogrid

CE certified fiberglass geogrid

warp knitting fiberglass geogrid

Product Description

Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification

Low elongation warp knitting fiberglass geogrid,it is the pavement reinforcement geogrid which composed of a series of fiberglass strands coated with an elastomeric polymer and formed into a grid structure. It’s the biaxial fiberglass geogrid with high adhesion strength reinforced overlays.Each strand has a remarkably high tensile strength, as well as a high modulus of elasticity at low elongation,making it stronger than steel by weight. The open grid structure promotes the efficient transfer of stress from both overlying and underlying asphalt layers.

Type	Item No.	Tensile Strength (kN/m)		Elongation(%)		Mesh Size (mm×mm)	Width (m)
Type	Item No.	Warp	Weft	Warp	Weft	Mesh Size (mm×mm)	Width (m)
Fiberglass Geogrid	EG5050	≥50	≥50	≤4	≤4	12~50	1~6
	EG100100	≥100	≥100	≤4	≤4	12~50	1~6
	EG200200	≥200	≥200	≤4	≤4	12~50	1~6
Self-adhesive Geogrid	EGA5050	≥50	≥50	≤4	≤4	12~50	1~6
	EGA100100	≥100	≥100	≤4	≤4	12~50	1~6
	EGA100200	≥100	≥200	≤4	≤4	12~50	1~6
	EGA200200	≥200	≥200	≤4	≤4	12~50	1~6

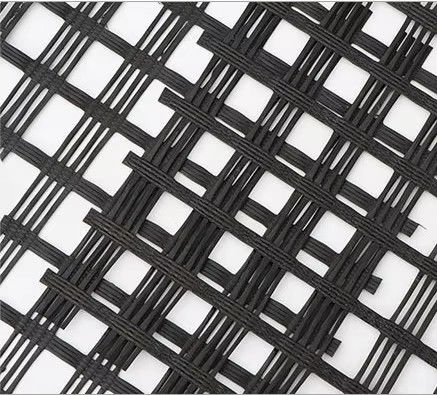

Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification 0

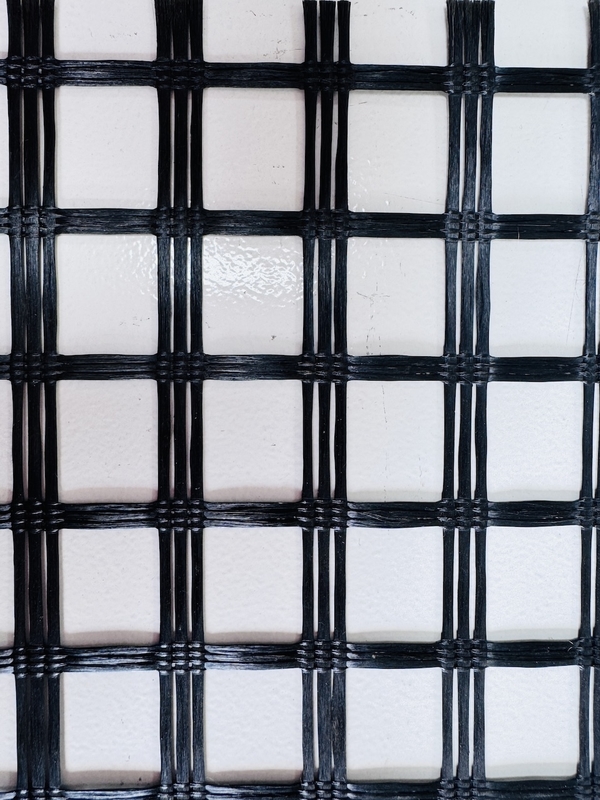

Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification 2

Fiberglass Geogrid Feature and Use

* High tensile strength: reducing reflective cracking.
* Low elongation, its break elongation is less than 4%.
* Creep resistance.
* Consistency.
* Temperature Stability.
* Nesting, Interlock and Restraint Effects.

* Reinforces asphalt concrete overlays in pavement construction.
* Utilized in the road widening
* Utilized in repaving of the airport upgrade.
* Reinforce roadbeds, railway, bridges, hydraulic, slope.

You may interest in others

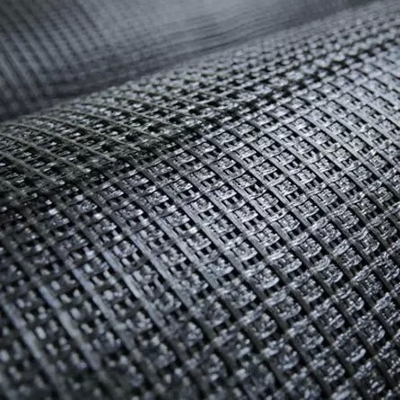

Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification 3

YIXING SHENZHOU Geosynthetics make infrastructure more sustainable. They extend the service life of roads, reduce the use of aggregates, conserve and protect water, minimize land disturbance and control soil erosion.

Sustainability is at the heart of what we do.

For more sustainable roads, use our geosynthetics

Contact us now and learn more about our products

Cathy

WA/ Wechat : 0086 139 0153 8890

cathy@geogrid-cn.com

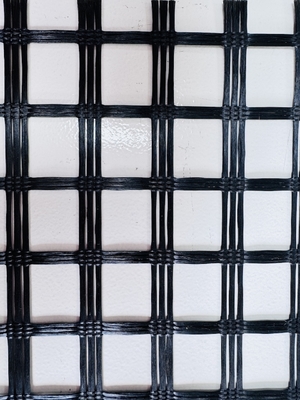

Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification 4
