Asphalt Paving Reinforcement Fiberglass Geogrid Bitumen Coated Prevent Cracking

Asphalt Paving Reinforcement Fiberglass Geogrid Bitumen Coated Prevent Cracking

Brand Name:	SZ
Model Number:	FG
MOQ:	10,000 Square Meter
Price:	$0.3-$2.0/SQM
Payment Terms:	L/C,T/T
Supply Ability:	100,000 Square Meters per Week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Product Name:

Fiberglass Reinforcement Geogrid

Application:

Asphalt Paving Reinforcement

Function:

Reinforcing Glass Grid

Material:

Fiberglass Yarn

Coating:

Bitumen & Asphalt Geogrid

Tensile Strength:

30kN/m-300kN/m

Elongation Rate:

<=4%

Roll Measure:

1-6m Width , 50-200m Length

Mesh Size:

25.4*25.4mm 12.7*12.7 50.8*50.8

Standard:

ASTM ISO

Packaging Details:

By roll, paper pipe + black PE shrinkage membrane + woven bag ( waterproof & UV resistance)

Supply Ability:

100,000 Square Meters per Week

Highlight:

fiberglass geogrid for asphalt paving

bitumen coated geogrid reinforcement

asphalt crack prevention geogrid

Product Description

Asphalt Paving Reinforcement Fiberglass Geogrid Bitumen Coated Prevent Cracking

Fiberglass geogrid is knitted by glass fiber filaments and coated with bitumen to provide a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life ot pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.

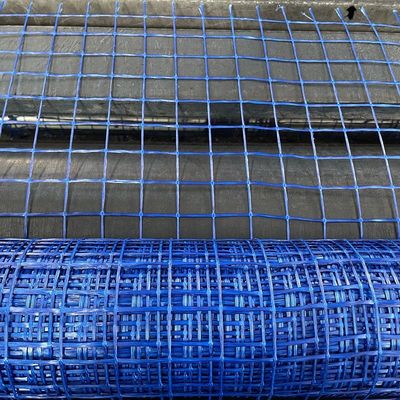

Asphalt Paving Reinforcement Fiberglass Geogrid Bitumen Coated Prevent Cracking 0

Fiberglass Geogrid Feature

● High tensile strength,reducing reflective cracking
● Low elongation, its break elongation is less than 3%
● Creep resistance
● Consistency
● Temperature Stability
● Nesting,Interlock and Restraint Effects

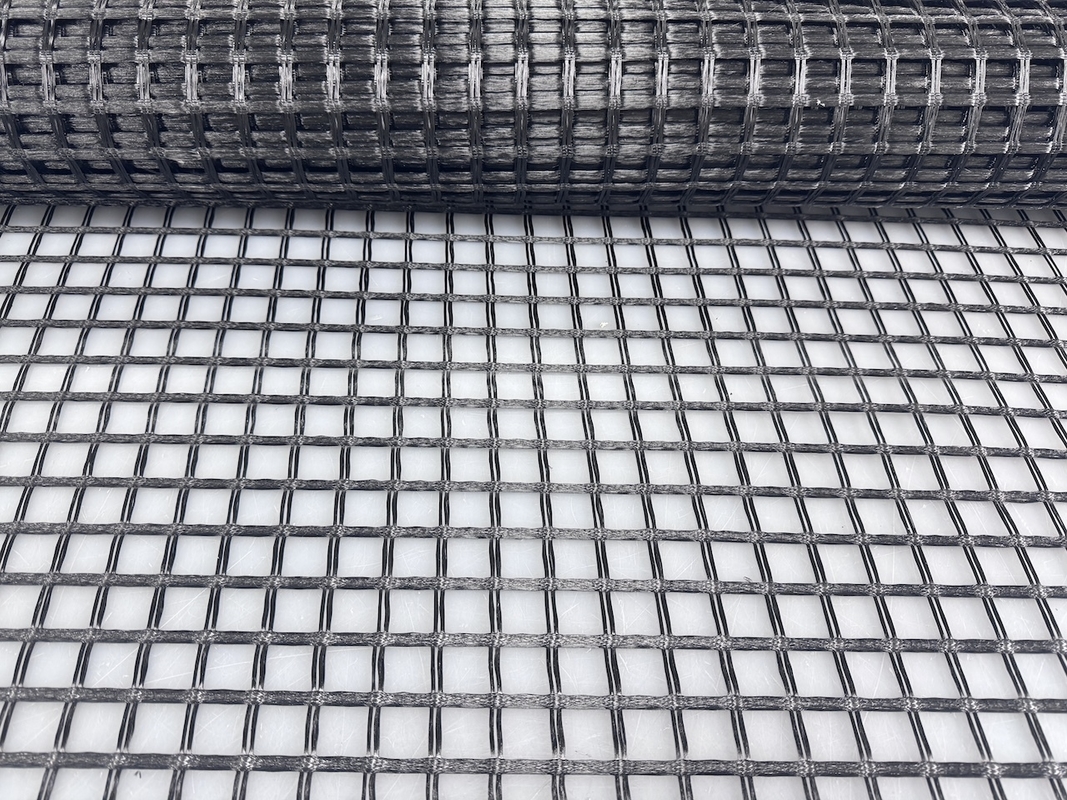

Asphalt Paving Reinforcement Fiberglass Geogrid Bitumen Coated Prevent Cracking 1

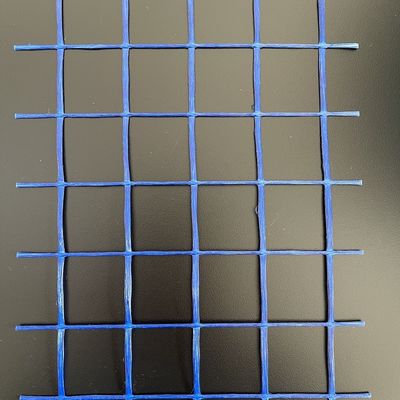

Asphalt Paving Reinforcement Fiberglass Geogrid Bitumen Coated Prevent Cracking 3
