High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil

Name: High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil
Brand: Shenzhou Earth Working Material Co. Ltd
SKU: Hdpe Plastic Geogrid
Price: 0.30 USD
Availability: InStock

Brand Name:	SZ
Model Number:	Hdpe Plastic Geogrid
MOQ:	10000sqm
Price:	$0.3-$2.0/SQM
Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO/CE

Product Name:

High Strength HDPE Uniaxial Plastic Geogrid Mesh

Application:

Reinforcement Retaining Wall Soil

Material:

High Density Polyethylene (HDPE)

Tensile Strength:

20-200KN/M

Chemical Resistance:

Excellent

Roll Length:

50 M - 100 M

Roll Width:

1 M - 6 M

Color:

Black

Product Description

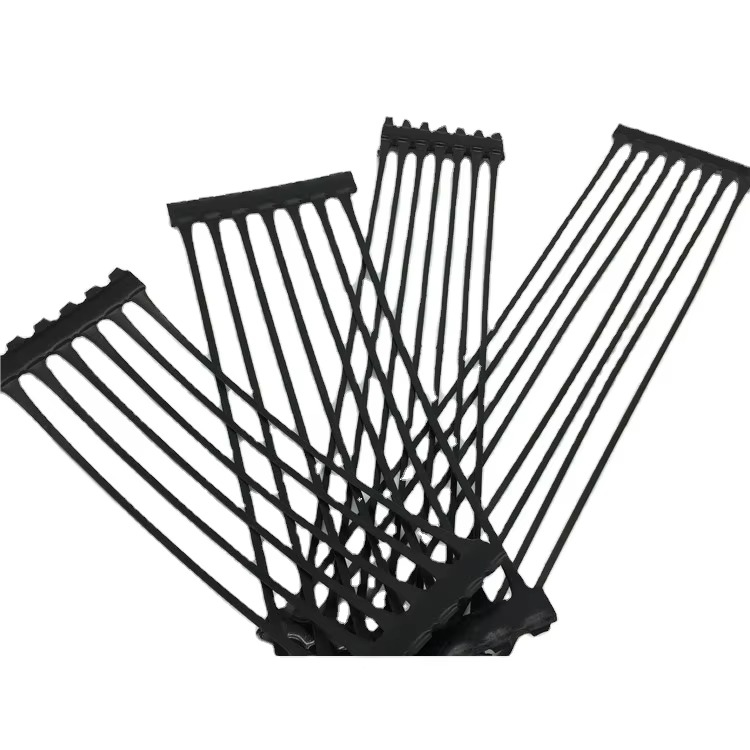

High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil

Description:

Yixing Shenzhou HDPE (High-Density Polyethylene) Geogrids are engineered polymeric grids used for soil reinforcement, slope stabilization, and load distribution in civil engineering projects. Manufactured through extrusion, punching, and uniaxial/biaxial stretching, they provide high tensile strength with minimal deformation.

High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil 0

Technical Specifications:

Parameter	Uniaxial Geogrid	Biaxial Geogrid
Tensile Strength	20-200 kN/m (MD)	15-50 kN/m (MD/CD)
Aperture Size	25-150mm	15-100mm
Roll Dimensions	2-6m width x 50-100m	2-5m width x 50m
Temperature Range	-60°C to +80°C	-60°C to +80°C

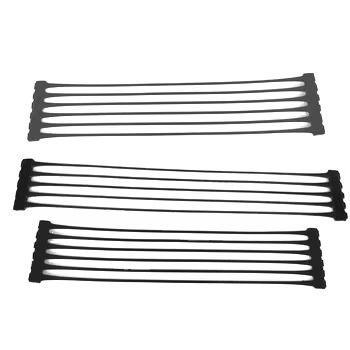

High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil 1

Applications :

1. Reinforced Soil Structures
Retaining walls (up to 30m height)

Steep slope stabilization (up to 70°)

2. Transportation Infrastructure
Road and railway embankments
Airport runways and taxiways

3. Mining & Industrial
Tailings dam reinforcement
Heavy-duty access roads

4. Coastal & Waterfront
Revetment protection
Breakwater foundations

5. Landfill Engineering
Liner system reinforcement
Final cover systems

High Strength HDPE Uniaxial Plastic Geogrid Mesh Reinforcement Retaining Wall Soil 3

Case Studies :
Qinghai-Tibet Highway: Uniaxial HDPE geogrids reduced frost heave by 60%

Hong Kong-Zhuhai-Macao Bridge: Biaxial grids enhanced seabed foundation stability.

Installation Guide :

Subgrade Prep: Compact to ≥95% Proctor density; remove sharp objects.

Laying:

Uniaxial: Align high-strength direction with load.

Biaxial: Overlap ≥300mm at edges.

Backfilling: Use granular fill in ≤300mm lifts.
