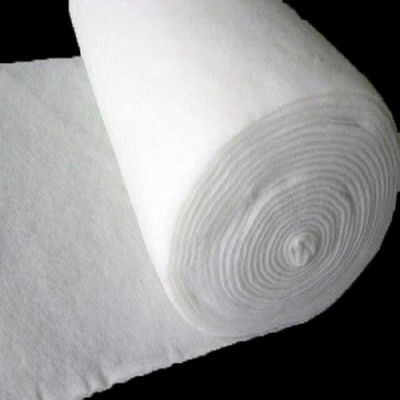

High Pesrmeability PP 200g Nonwoven Geotextile Fabric Application Filtration Layer In Drainage Geotechnical Material

High Pesrmeability PP 200g  Nonwoven Geotextile Fabric Application Filtration Layer In Drainage Geotechnical Material

Yixing Shenzhou 200g PP nonwoven geotextile is commonly used as a filtration layer in drainage systems due to its excellent permeability, filtration properties, and durability. Here’s a breakdown of its key features and applications:

PP 200g  Nonwoven Geotextile Fabric Application Filtration Layer In Drainage  Key Properties:
Material: Polypropylene (PP) – Resistant to chemicals, rot, and biological degradation.

Weight: 200 g/m² – Provides a good balance between strength and filtration efficiency.

Nonwoven Structure: Needle-punched or thermally bonded for optimal filtration.

Filtration Efficiency: Allows water to pass while preventing soil/clogging particles from entering the drainage system.

High Permeability: Ensures efficient water flow, reducing hydrostatic pressure.

UV Resistance: Suitable for temporary exposure but should be covered for long-term use.

Tensile Strength: Provides structural support in drainage applications.

Certifications & Compliance:

Our 200g PP nonwoven geotextile meets or exceeds the following standards:

ISO 9001:2015 Quality Management System

CE Marking for construction products

ASTM D6241 Standard Specification for Nonwoven Geotextiles

EN 13249 Geotextiles for roads and paved areas

200g Polypropylene Non Woven Geotextile Application & Function :

1. Road & Railway Construction:
   Separation layer between subgrade and aggregate base
   Reinforcement for weak subsoils
   Prevention of intermixing between soil layers
2. Drainage Systems:
   Filtration layer in drainage applications
   Protection for geomembranes
   Landfill leachate collection systems
3. Erosion Control:
   Slope stabilization
   Riverbank and coastal protection
   Land reclamation projects
4. Other Applications:
   Foundation reinforcement
   Retaining wall backfill
   Pond and canal lining protection

Staple fibers needle punched non woven geotextile Parameters

Yixing Shenzhou 200g Polypropylene Non Woven Geotextile Installation Guide:

Site Preparation:

Clear area of debris, sharp objects, and vegetation

Roll Placement:

Unroll geotextile with machine direction (MD) parallel to anticipated stress direction

Overlap Requirements:

Minimum 300mm side laps and 500mm end laps

Anchoring:

Secure edges with staples or backfill immediately
Cover Material Placement: Place fill material carefully to avoid damage

If you have more question ,welcome to contact with Yixing Shenzhou !!!
