HDPE Or PP Material Triaxial Geogrid For Driveway Reinforcement Pavement Retaining Wall Roadwork Construction

Brand Name:	SZ
Model Number:	TX
MOQ:	10.000 square meter
Price:	$0.3-$2.0/SQM
Payment Terms:	L/C, T/T
Supply Ability:	10.000 square meter per day

Detail Information

Product Description

Detail Information

Place of Origin:

JIANGSU,CHINA

Certification:

ISO

Product Name:

Triaxial Geogrid

Application:

Driveway Reinforcement Pavement Retaining Wall Roadwork Construction

Material:

HDPE Or PP

Feature:

High Tensile Strength

Tensile Strength:

10-16kn

Elongation:

13-15%

Roll Width:

1-6m

Packaging Details:

IN DUDE. OR CUSTOMIZED.

Supply Ability:

10.000 square meter per day

Highlight:

PP Material Triaxial Geogrid

Driveway Reinforcement Triaxial Geogrid

Product Description

HDPE Or PP Material Triaxial Geogrid For Driveway Reinforcement Pavement Retaining Wall Roadwork Construction

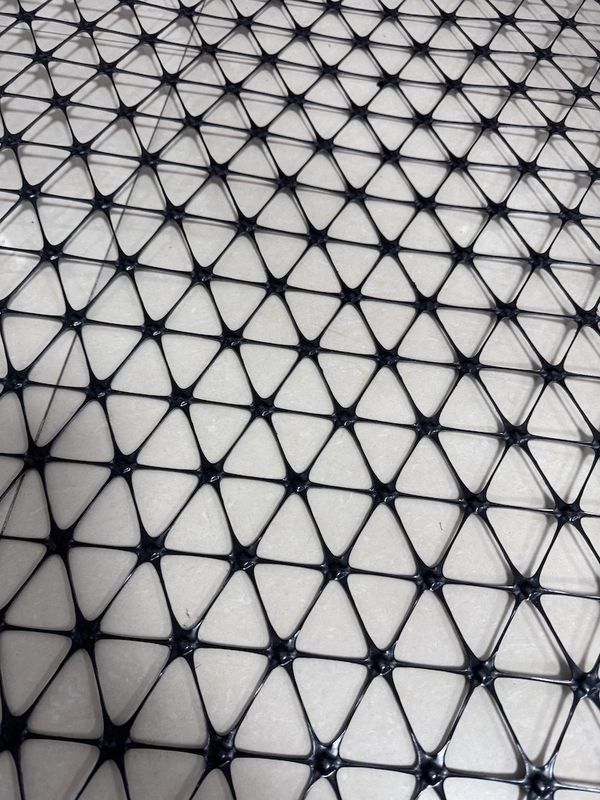

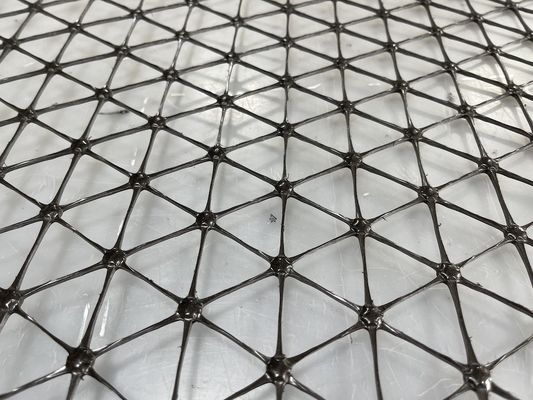

Triaxial geogrid is manufactured from a punched polypropylene sheet, which is then oriented in three substantially equilateral directions so that the resulting ribs shall have a high degree of molecular orientation, which continues at least in part through the mass of the integral node.

Index Properties	TX5	TX7	TX120	TX160
Rib pitch(2) , mm (in) Longitudinal	40 (1.60)	40 (1.60)	40 (1.60)	40 (1.60)
Rib pitch(2) , mm (in) Diagonal	40 (1.60)	40 (1.60)	40 (1.60)	40 (1.60)
Mid-rib depth(1), mm (in) Diagonal	1.3(0.05)	1.2 (0.05)	1.2 (0.05)	1.6(0.06)

HDPE Or PP Material Triaxial Geogrid For Driveway Reinforcement Pavement Retaining Wall Roadwork Construction 0

It has high tensile strength, tear resistance strength and creep resistance.

It has high tensile strength in the longitudinal, transverse and vertical directions. It can withstand loads from different directions and effectively enhance the stability of the soil. For example, the tensile strength of some models of three-dimensional geogrids can reach over 50 kN/m in all three directions. Due to its three-dimensional structure and high-strength material properties, it has good tear resistance and can resist the tearing forces that may occur in the soil. Under the action of long-term sustained loads, it has good creep resistance, can maintain the stability of its shape and mechanical properties, and ensure long-term reinforcement effects.

It has strong corrosion resistance, anti-aging properties and certain drainage performance.

It has good corrosion resistance to chemical substances such as acids, alkalis and salts. It can maintain stable performance in soils with different chemical environments and is not easily corroded or damaged. With the addition of anti-aging agents and the like, it possesses excellent anti-aging and anti-ultraviolet properties. It can be used outdoors for a long time with a slow decline in performance, and has a long service life.Under normal usage conditions, its service life under load can reach over 100 years. It has certain drainage performance. Its mesh structure allows water in the soil to pass through, thereby reducing soil pressure,
enhancing the stability of the soil, and helping to prevent problems such as soil instability caused by water accumulation.

HDPE Or PP Material Triaxial Geogrid For Driveway Reinforcement Pavement Retaining Wall Roadwork Construction 3

It is lightweight, easy to cut and splice, and has a good bond with the soil.

It is convenient for handling, transportation and construction, and can reduce labor intensity and construction costs. It can be cut and spliced according to the requirements of the project to adapt to different construction sites and shape requirements. Its unique three-dimensional structure can fully engage and interlock with the soil, enabling the geogrid and the soil to form a
solid whole. This effectively transfers stress and greatly improves the stability and bearing capacity of the soil.

HDPE Or PP Material Triaxial Geogrid For Driveway Reinforcement Pavement Retaining Wall Roadwork Construction 4

HDPE Or PP Material Triaxial Geogrid For Driveway Reinforcement Pavement Retaining Wall Roadwork Construction 6

Triaxial Geogrid Parameters

Model	SXTX
Name	Multiaxial geogrid
Material	PP HDPE
Color	Black
Warranty period	5 years
Specification	50m/101m/customer Requirement
Width	1m/2m/3m/4m/5m/6m
Function	Road Construction
Standard	CE ISO
Application scenario	Industrial
