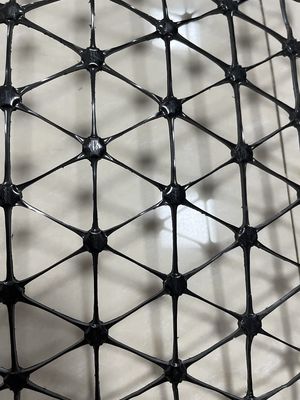

Geomalla Triaxial Polypropylene Geogrid Mesh For Civil Engineering Project TX150

Brand Name:	SZ
Model Number:	TX
MOQ:	10.000 square meter
Price:	$0.3-$2.0/SQM
Payment Terms:	L/C, T/T
Supply Ability:	10.000 square meter per day

Detail Information

Product Description

Detail Information

Place of Origin:

JIANGSU,CHINA

Certification:

ISO

Product Name:

Polypropylene PP Geomalla

Application:

Civil Engineering

Key Word:

Triaxial Geogrid

Feature:

High Tensile Strength

Tensile Strength:

10-16kn

Elongation:

13-15%

Roll Width:

1-6m

Packaging Details:

IN DUDE. OR CUSTOMIZED.

Supply Ability:

10.000 square meter per day

Highlight:

Triaxial Polypropylene Geogrid Mesh

Civil Engineering Triaxial Polypropylene Geogrid

Product Description

Polypropylene PP Geomalla Triaxial Geogrid for Civil Engineering Project TX150

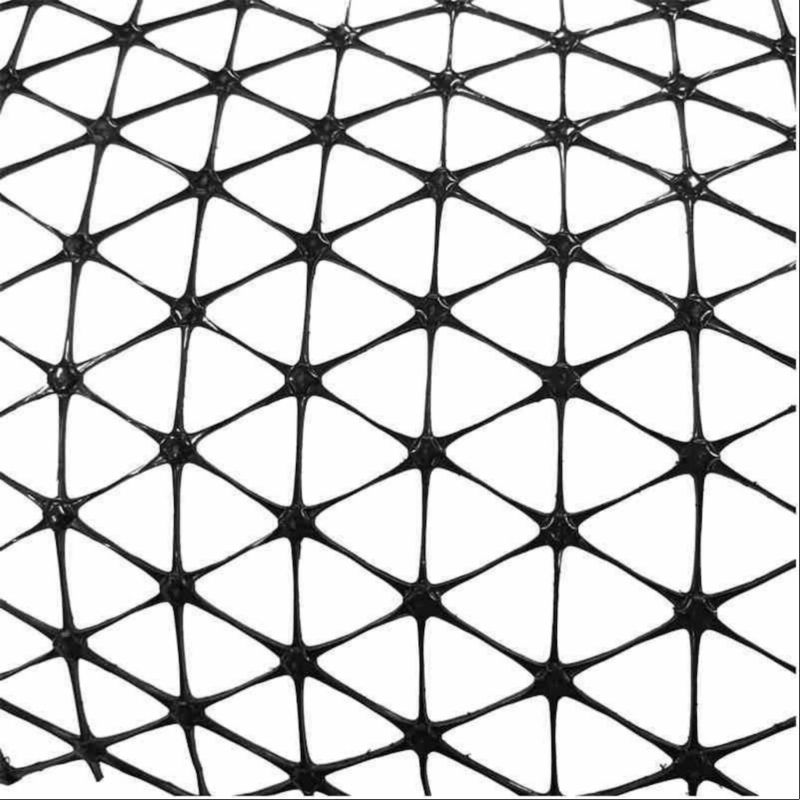

Triaxial geogrid is manufactured from a punched polypropylene sheet, which is then oriented in three substantially equilateral directions so that the resulting ribs shall have a high degree of molecular orientation, which continues at least in part through the mass of the integral node.

Index Properties	TX5	TX7	TX120	TX160
Rib pitch(2) , mm (in) Longitudinal	40 (1.60)	40 (1.60)	40 (1.60)	40 (1.60)
Rib pitch(2) , mm (in) Diagonal	40 (1.60)	40 (1.60)	40 (1.60)	40 (1.60)
Mid-rib depth(1), mm (in) Diagonal	1.3(0.05)	1.2 (0.05)	1.2 (0.05)	1.6(0.06)

Geomalla Triaxial Polypropylene Geogrid Mesh For Civil Engineering Project TX150 0

Triaxial geogrid is widely used in soft soil foundation projects such as roads, railways, dams and ports.

1. Strengthen the stability of the subgrade, And the road surface cracking resistance

2. Strengthen the foundation of the soft soil and increase the protect ability to enhance the bearing capacity.

3. Anti-corrosive, long service life suitable for acid or alkaline environments.

4. lower weight, easy for installation.

5. Triaxial geogrid acheive same enhancement but decreasing 10%-50% total costs.

Geomalla Triaxial Polypropylene Geogrid Mesh For Civil Engineering Project TX150 2

Geomalla Triaxial Polypropylene Geogrid Mesh For Civil Engineering Project TX150 4

Geomalla Triaxial Polypropylene Geogrid Mesh For Civil Engineering Project TX150 6

Triaxial Geogrid Industry Practice and Standards

Technical Standards: According to the "Technical Standards for Three-Dimensional Geogrids", the parameters such as tensile strength ≥ 120kN/m, low elongation (<5%), and acid and alkali corrosion resistance must be met.
Successful Cases: In the Beijing-Shijiazhuang Expressway project, the three-dimensional geogrid effectively controls the seepage pressure and improves the drainage performance; it significantly reduces wind erosion and settlement in the high-fill aeolian sand roadbed.
