| Brand Name: | SZ |
| Model Number: | EGA |
| MOQ: | 30000 square meter |
| Price: | $0.3-$2.0/SQM |
| Payment Terms: | ,L/C,T/T |
| Supply Ability: | Normaly 30000 square meter per day. Exacltly capacity will subject to specification. |
Asphalt Reinforcement Fiberglass Geo composite Geogrid Polyester Geocomposite Geogrid

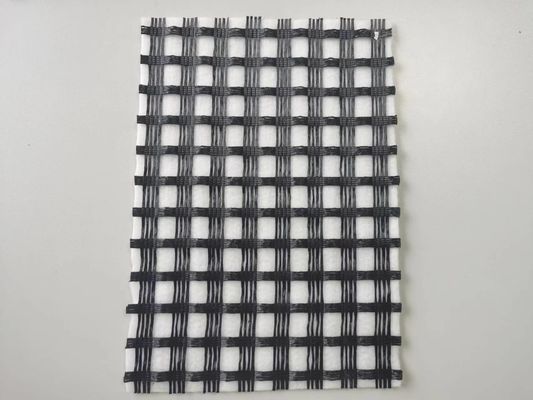

Fiberglass Geogrid Stitched With Nonwoven Geotextile Impregnated By Bitumen is an Asphalt
Reinforcement Composite that fiberglass geogrid with light weight Pet (PP) Spunbond Nonwoven Fabric .
They are stitched together and coated by bitumen to strengthen the bond with the asphalt layers .
The asphalt layer to increase the tensile strength to prevent road surface crack caused by foundation crack reflection. The
chemistry stability is good, the hot-stability is good, anti-weary dehiscence, anti-low temperature shrinkage crack, postponement reduction reflection crack.
|
Fiberglass Geogrid |
EGA 30-30 |
EGA 50-50 |
EGA 80-80 |
EGA 100-100 |
EGA 120-120 |
EGA 150-150 |
EGA 200-200 |
EGA 300-300 |
|
|
Mesh size (mm) |
25.4x25.4 or 12.5x12.5 or 50.8x50.8 |
||||||||
|
Breaking strength ≥(kN/m) |
MD |
30 |
50 |
80 |
100 |
120 |
150 |
200 |
300 |
|
CMD |
30 |
50 |
80 |
100 |
120 |
150 |
200 |
300 |
|
|
MD/CMD |
4/4 |
||||||||
|
Thernal tolerance(℃) |
-100~280 |
||||||||
|
Width≤(m) |
6 |
||||||||
|
Nonwoven Geotextile |
|
|
Material |
PP or PET |
|
Mass per unit area |
20g---100g/㎡ |
|
Roll Width |
3.95 /5.95 m |
|
Roll Length |
50/100 m |
Product Features
1. Good tensile strength
2. High modulus of elasticity
3. Good temperature resistance
4. High water permeability and filtration
5. Tear resistance, anti-dissemination, long service life
Product Application
1. For highways, railways, airports, and other road enhancements;
2. For water conservancy, port, farmland reclamation, landill, municipal construction and other projects;
3. For the maintenance of the old road (asphalt pavement, cement concrete pavement), such as widening;
4. For the subgrade strengthening.
Customized logo (Min. order: 50,000 square meters)
Customized packaging (Min. order: 50,000 square meters)
Graphic customization (Min. order: 50,000 square meters)
