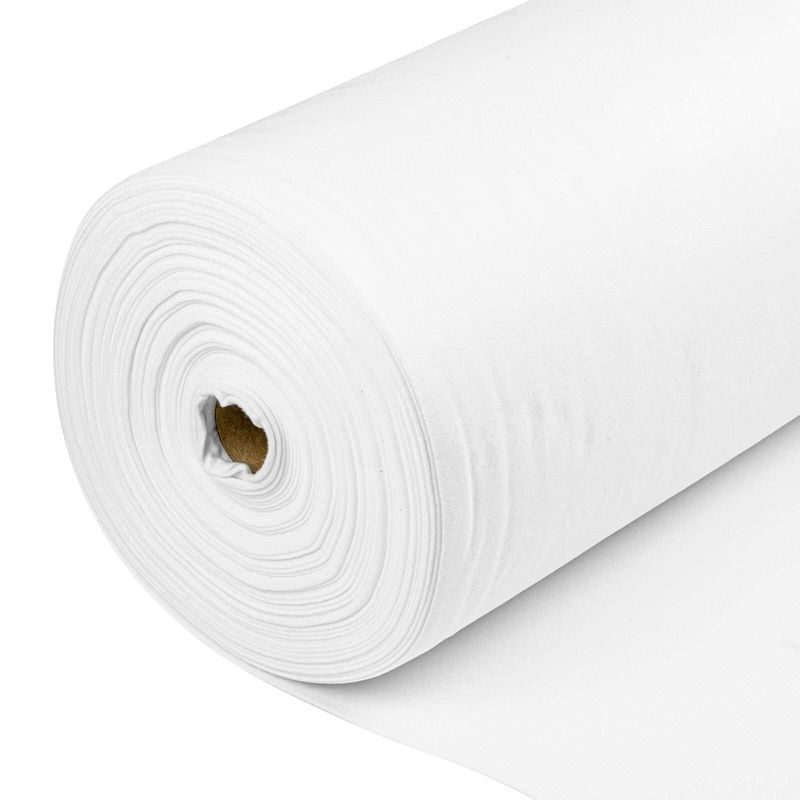

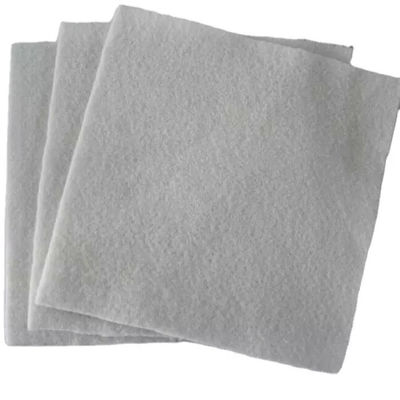

ASTM D6241 Polyester Nonwoven Geotextile Erosion Resistence For Civil Engineering

Name: ASTM D6241 Polyester Nonwoven Geotextile Erosion Resistence For Civil Engineering
Brand: Dengwanyi Co., Ltd
SKU: Polyester Nonwoven Geotextile
Price: 0.30 USD
Availability: InStock

Brand Name:	SZ
Model Number:	Polyester Nonwoven Geotextile
MOQ:	20GP
Price:	$0.3-$2.0/SQM
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8Ton Per Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO/CE

Product Name:

500g Polyester Nonwoven Geotextile

Material:

Pure Polyester

Color:

White/Black/ Green

Length:

50-100 M

Type:

Nonwoven

Application:

Transportation Industry

CBR Burst Strength:

200-4000 N

Elongation:

25-100%

Width:

1-6 M

Weight:

100-800 G/m2

Packaging Details:

Roll By Woven Bags

Supply Ability:

8Ton Per Day

Highlight:

ASTM D6241 Polyester Nonwoven Geotextile

Polyester Nonwoven Geotextile Erosion Resistence

Product Description

Road Construction Geotextile Erosion Resistence Polyester Nonwoven Geotextiles For Civil Engineering Projects

Geotextiles are permeable geosynthetic materials made by needle-punched or woven synthetic fibers. The raw materials are PET or PP. Geotextiles comprise woven geotextiles and non-woven filament fiber geotextiles.

Advantage of Geotextile

✅Anti-aging the product has very high anti-ultraviolet radiation ability, not easy to degradation.

✅High temperature resistance up to 230℃ maintaining structure stability and original physical properties.

✅High flat drainage and vertical permeability.

✅High creep resistance.

✅Resistance of erosion of chemicals in soil with the corrosion of gasoline and diesel etc.

✅High elongation under certain stress, thus able to adapt to uneven and irregular bases.

ASTM D6241 Polyester Nonwoven Geotextile Erosion Resistence For Civil Engineering 0

Why Choose Our Nonwoven Geotextile?

1.Premium Material

100% virgin polyester staple fiber
Needle-punched nonwoven structure

2.Performance Guaranteed

Meets ASTM D6241, ISO 9001 standards
10+ years service life in harsh conditions

3.Global Project Support

10+ countries served
MOQ 1x20' container (negotiable)

ASTM D6241 Polyester Nonwoven Geotextile Erosion Resistence For Civil Engineering 2

Technical Specifications

Unit weight (g/sqm)	Thickness (mm)	Breaking strength (kn/m)	CBR burst strength(KN)	Elongation at break(%)	Tear Strength (KN)
100	0.9	2.5	0.3	25-100	0.08
150	1.3	4.5	0.6	25-100	0.12
200	1.7	6.5	0.9	25-100	0.16
250	2.1	8.0	1.2	25-100	0.20
300	2.4	9.5	1.5	25-100	0.24
350	2.7	11.0	1.8	25-100	0.28
400	3.0	12.5	2.1	25-100	0.33
450	3.3	14.0	2.4	25-100	0.38
500	3.6	16.0	2.7	25-100	0.42
600	4.1	19.0	3.2	25-100	0.46
800	5.0	25.0	4.0	25-100	0.60

Project Applications

1. Road Construction

Separation & stabilization of subgrade

2. Landfill Systems

Leachate collection & protection layer

3. Drainage Systems

High-flow filtration in civil works

Certifications:

ISO 9001,ISO14001,ISO45001
CE Certified

ASTM D6241 Polyester Nonwoven Geotextile Erosion Resistence For Civil Engineering 4
