200g/M2 250g/M2 Nonwoven Polyester Geotextile For Dam And Road Construction

Name: 200g/M2 250g/M2 Nonwoven Polyester Geotextile For Dam And Road Construction
Brand: Dengwanyi Co., Ltd
SKU: Polyester Nonwoven Geotextile
Price: 0.30 USD
Availability: InStock

Brand Name:	SZ
Model Number:	Polyester Nonwoven Geotextile
MOQ:	20GP
Price:	$0.3-$2.0/SQM
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8Ton Per Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO/CE

Product Name:

Polyester Nonwoven Geotextile

Material:

Pure Polyester

Color:

White Or Black

Length:

50-100 M

Type:

Nonwoven

Application:

Dam And Road Construction

CBR Burst Strength:

200-4000 N

Elongation:

25-100%

Width:

1-6 M

Weight:

100-800 G/m2

Packaging Details:

Roll By Woven Bags

Supply Ability:

8Ton Per Day

Highlight:

250g/M2 Nonwoven Polyester Geotextile

200g/M2 Nonwoven Polyester Geotextile

Product Description

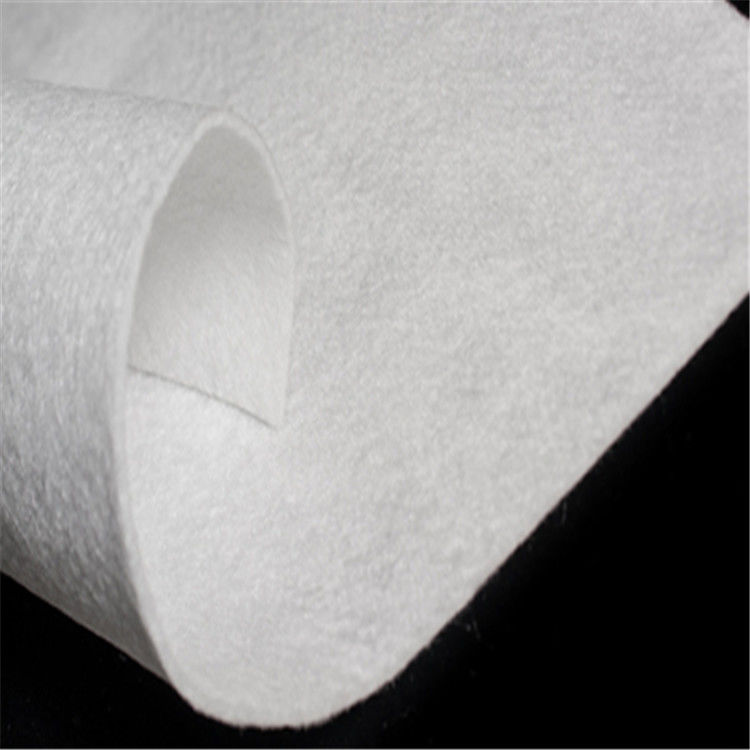

Good Permeability Polyester Nonwoven Geotextiles For Dam And Road Construction

Description:

The non woven geotextiles are made by non-woven process technology, selects polyester staple fiber with high monofilament strength and excellent thickness ratio as raw material after underwent adequate scutching.

The state-of-the-art high speed needle punching production line is adopted, its roll width is up to 8meters.

Properties:

It is of excellent physical and hydraulic properties, and especially its advantages in the tensile strength, longitudinal and lateral strength ratio, uniformity and so on.

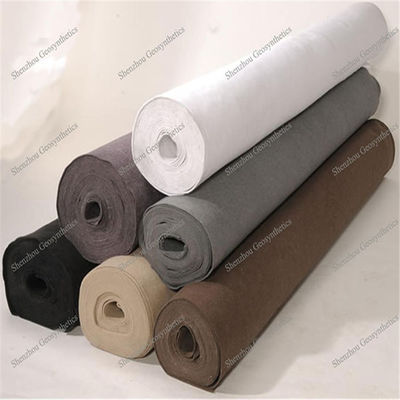

Supply a wide range of color, such as white, green and grey. Independent developed soft green fiber can protect installer’s eyes at the onsite during work under the strong light, and it is eco-friendly productions.

Type(mass per unit area): 200g/m2, 250g/m2, 300g/m2, 350g/m2, 400g/m2, 450g/m2, 500g/m2, 600g/m2, 800g/m2

200g/M2 250g/M2 Nonwoven Polyester Geotextile For Dam And Road Construction 0

Why Choose Our Nonwoven Geotextile?

1.Premium Material

100% virgin polyester staple fiber
Needle-punched nonwoven structure

2.Performance Guaranteed

Meets ASTM D6241, ISO 9001 standards
10+ years service life in harsh conditions

3.Global Project Support

10+ countries served
MOQ 1x20' container (negotiable)

200g/M2 250g/M2 Nonwoven Polyester Geotextile For Dam And Road Construction 1

200g/M2 250g/M2 Nonwoven Polyester Geotextile For Dam And Road Construction 2

Technical Specifications

Type		SZGT200	SZGT250	SZGT300	SZGT350	SZGT400	SZGT450	SZGT500	SZGT600	SZGT800
mass per unit area	g/sqm	200	250	300	350	400	450	500	600	800
thickness, min.	mm	1.7	2.1	2.4	2.7	3.0	3.3	3.6	4.1	5.0
tensile strength at break(MD/CMD), min.	kN/m	6.5	8.0	9.5	11.0	12.5	14.0	16.0	19.0	25.0
elongation at break(MD/CMD)	%	25~100
tear strength(MD/CMD), min.	kN	0.16	0.20	0.24	0.28	0.33	0.38	0.42	0.46	0.60
CBR puncture resistance, min.	kN	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.2	4.0
apparent opening size(O90)	mm	0.06~0.20
vertical permeability coefficient	cm/s	(1.0~9.9)x(10^-1~10^-3)
roll width	m	8.0

Project Applications

1. Road Construction

Separation & stabilization of subgrade

2. Landfill Systems

Leachate collection & protection layer

3. Drainage Systems

High-flow filtration in civil works

Certifications:

ISO 9001,ISO14001,ISO45001
CE Certified

200g/M2 250g/M2 Nonwoven Polyester Geotextile For Dam And Road Construction 4
