Brand Name: | SZ |
Model Number: | HDPE LDPE LLDPE |
MOQ: | 30000 square meters |
Price: | $0.3-$2.0/SQM |
Payment Terms: | T/T,L/C |
Supply Ability: | 100 Tons per day |
Yixing Shenzhou HDPE Geomembrane
High Density Polyethylene Material Geomembrane is specially designed and fabricated for landfills and mining applications due to its advanced stabilization, excellent interface friction coefficient and inherent flexibility. textured HDPE geomembranes have been widely in backfilled liner, retaining backfill on steep side, heap leach pads, landfill and pad base liner, water conservancy applications such as dam, reservoirs, sewage pools, swimming pools, buildings, underground buildings, garbage dumps and mining projects.
Properties | Unit | Test Method | Product Specification | Test Frequency |
Thickness | mm | ASTMD5199 | 0.2-3 | Per roll |
Density | g/cc | ASTMD1505/D792 | 0.94 | 90,000kg |
Asperity Height | mm | ASTMD 7466 | 0.4 | every 2nd roll |
Geomembranes Functions and Applications:
What is geomembrane used for?
Our customer HDPE liner projects include aquaculture (fish ponds, shrimp ponds), water conservancy (canals, dam), environmental protection (landfill sites, sewage treatment), mining (heap leaching ponds, tailings), agriculture (water reservoirs), and many other projects, customer satisfaction is 100%.
Geomembrane Application: Geomembrane Shrimp Pond Liner
Geomembrane Liner Aquaculture Projects: fish pond liner, Tilapia pond liner, shrimp pond liner, crab pond liner, and industrialized aquaculture pond liner.
No. | Properties | Test Method | Test Value | |||||||
1 | Thickness(mm) | ASTM D5199 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
2 | Density (g/cm2) | ASTM D1505 | 0.939 | |||||||
3 | Tensile Propeties | |||||||||
Yield Strength(N/mm) | ASTM D6693 | 7 | 11 | 15 | 18 | 22 | 29 | 37 | 44 | |
Break Strength(N/mm) | 13 | 20 | 27 | 33 | 40 | 53 | 67 | 80 | ||
Yield Elongation % | Type IV | 12 | ||||||||
Break Elongation % | 700 | |||||||||
4 | Tear Resistance/N | ASTM D1004 | 62 | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
5 | Puncture Resistance/N | ASTM D4833 | 160 | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
6 | Stress Crack resistance/hr |
ASTM D5397 (App.) |
300 | |||||||
7 | Carbon Black | |||||||||
Carbon Black Content % | ASTM D1603 | 2.0-3.0 | ||||||||
Carbon Black Dispersion | ASTM D5596 |
Carbon black dispersion(only near spherical agglomerates)for 10 different views 9 in categories 1 or 2 and 1 in category 3 |
||||||||
8 | Oxidative Induction Time(OIT) | |||||||||
Standard OIT/min | ASTM D3895 | 100 | ||||||||
High Pressure OIT/min | ASTM D5885 | 400 | ||||||||
9 | Oven Aging at 85°C | |||||||||
Standard OIT-% retained after 90 days | ASTM D3895 | 55 | ||||||||
High pressure OIT-% retained after 90 days | ASTM D5885 | 80 | ||||||||
10 | UV Resistance | |||||||||
Standard OIT retained after 1600 hrs | ASTM D3895 | 50 | ||||||||
High pressure OIT retained after 1600 hrs | ASTM D5885 | 50 | ||||||||
11 | Low tempreture impact brittle property at -70°C | _ | Pass | |||||||
12 | Permeability g·cm/(cm2)·Pa | _ | ≤1.0×10-13 | |||||||
13 | Dimensional Stability/% | _ | ±2 |

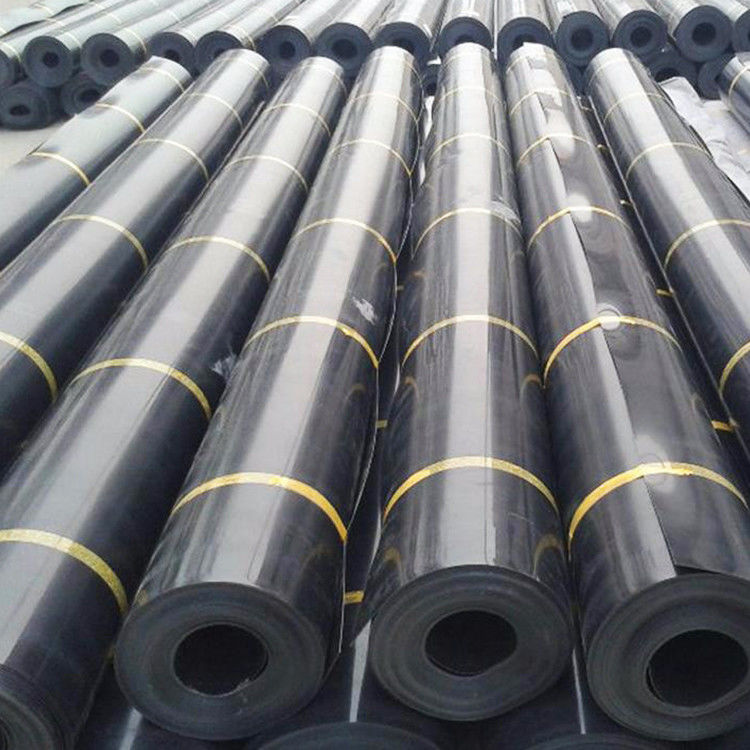

Geomembrane Manufacturer Workshop
The waterproofing geomembrane liner is a kind of geosynthetic material, its raw material is the new polyethylene resin particles extracted from crude oil, which are processed by the special process of film calendering machine or film blowing equipment. The geomembrane manufacturer from China, Has its Geomembrane factory, which Can be customized, OEM is available.
Q: What is a geomembrane used for?
A: HDPE geomembrane is suitable for environmental protection, sanitation, water conservancy engineering, municipal engineering, garden, petrochemical, mining, agriculture, aquaculture, salt industry, hydraulic, transportation, and oil and gas applications as well as in the waste industry.
Q: What are the three types of geomembranes?
A: Geomembrane, as a kind of geosynthetics, is mainly divided into HDPE Geomembrane(high density polyethylene geomembrane) or HDPE liner, LLDPE Geomembrane(line low density polyethylene geomembrane) and PVC Geomembrane(Polyvinyl Chloride Geomembrane).
Q: What are the HDPE geomembrane liners?
A: HDPE geomembrane liners – High-Density Polyethylene geomembrane liners.
Q: What are the types of geomembrane sheets?

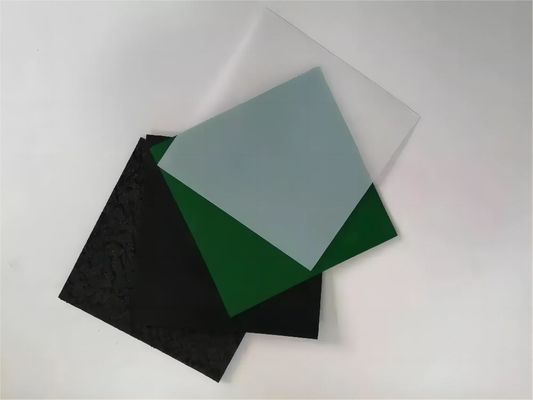

A: In terms of material, geomembrane types are divided into HDPE geomembrane sheets and LLDPE geomembrane sheets. In terms of color, geomembrane types are divided into black geomembrane, blue geomembrane, green geomembrane, and white geomembrane. In terms of usage, geomembrane types are divided into aquaculture geomembrane and engineering geomembrane. From the surface, the geomembrane types are divided into smooth geomembrane and rough geomembrane. There are many types of geomembranes, but the main function is to provide support for seepage prevention and environmental protection. Our company is a geomembrane liner company and factory, we can customize geomembrane according to customer needs.
Q: What is the thickness of the geomembrane?
A: Geomembrane Thickness range 0.3mm-3mm.
Q: What is the best thickness for a geomembrane pond liner?
A:0.75mm geomembrane thickness is popular.
Q: Is Geomembrane HDPE waterproof?
A: Yes, our HDPE Geomembrane is a waterproof Geomembrane, impermeable Geomembrane.
Q: How long will the geomembrane pond liner last?
A:> 10 years exposed to the sun.
Q: Why is the geomembrane pond liner black?
A: The carbon black can improve the UV resistance, and life is longer.
Q: How do I know how much geomembrane pond liner I need?
A: The geomembrane width and geomembrane length, geomembrane depth, geomembrane overlap, extra length for trench, and the geomembrane waste rate.
Q: How do choose suitable geomembrane manufacturers from China?
A: YIXING SHENZHOU geomembrane liner, factory price, ASTM standard quality, delivery time within 15 days, Top 10 geomembrane manufacturers, and suppliers from China.
