0.75mm 30 Mil Thick HDPE Geomembrane Agricultural Pond Liner Gm13 Standard

Name: 0.75mm 30 Mil Thick HDPE Geomembrane Agricultural Pond Liner Gm13 Standard
Brand: Dengwanyi Co., Ltd
SKU: HDPE LDPE LLDPE
Price: 0.30 USD
Availability: InStock

Brand Name:	SZ
Model Number:	HDPE LDPE LLDPE
MOQ:	30000 square meters
Price:	$0.3-$2.0/SQM
Payment Terms:	T/T,L/C
Supply Ability:	100 Tons per day

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Product Name:

HDPE Geomembrane

Thickness:

0.75mm 30 Mil

Application:

Agricultural Pond Liner

Function:

High Strength UV Resistance

Material:

HDPE LDPE LLDPE

Type:

Smooth Or Textured

Length:

50m-100m

Width:

1m-8m

Packaging Details:

Packed in woven bag or your requirements

Supply Ability:

100 Tons per day

Highlight:

Gm13 Standard HDPE Geomembrane

HDPE Geomembrane Agricultural Pond Liner

30 Mil Thick HDPE Geomembrane

Product Description

Gm13 Standard 0.75mm 30 Mil Thick HDPE Geomembrane Agricultural Pond Liner

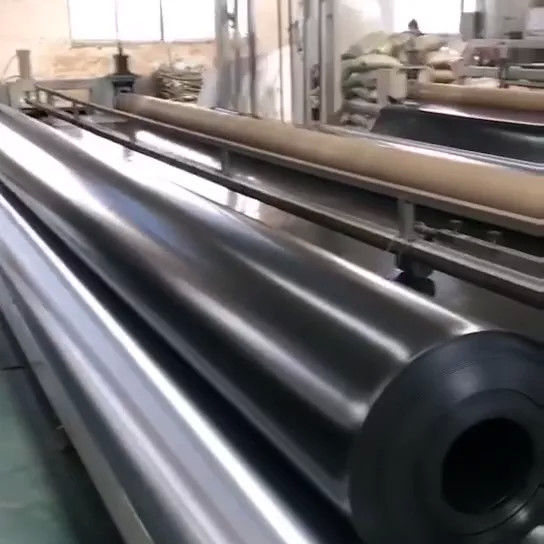

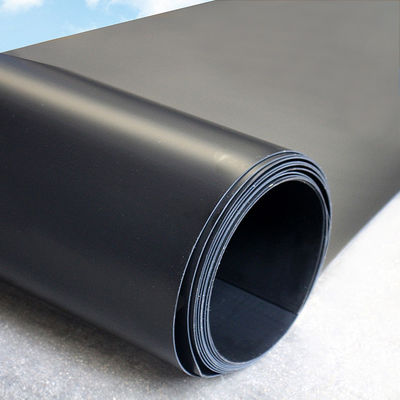

YIXING SHENZHOU Smooth HDPE Geomembrane is manufactured from High density polyethylene resin with proportional carbon black antioxidant, anti-aging and UV-resistance materials by the technology of coextrusion-blown triple layer. The surface of both sides are smooth.

Item	Value
Type	HDPE Geomembrane
Warranty	More than 5 years
After-sale Service	Online technical support
Application	Landfill, Tunnel, Subway, Fish Ponds, Shrimp Ponds, Bamboo/Tree Barrier, Bank, Dam, Pool etc
Place of Origin	JIANGSU, China
Color	Black,Green,Blue,White, Yellow
Thickness	0.3-3.0mm
Width	1m-10m
Surface	Smooth Surface

Third-Party Tested: Include certified test reports

0.75mm 30 Mil Thick HDPE Geomembrane Agricultural Pond Liner Gm13 Standard 0

0.75mm 30 Mil Thick HDPE Geomembrane Agricultural Pond Liner Gm13 Standard 1

Item	Smooth Geomembrane Technical Data
Thickness mm	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Density g/cm3	>=0.940
Tensile yield strength(TD/MD)	≥4	≥7	≥10	≥13	≥16	≥20	≥26	≥33	≥40
Tensile Strength at Break(TD/MD)	≥6	≥10	≥15	≥20	≥25	≥30	≥40	≥50	≥60
Elongation at Yield(TD/MD)	_	_	_	≥11
Puncture Strength(N)	≥72	≥120	≥180	≥240	≥300	≥360	≥480	≥600	≥720
Elongation (TD/MD)	≥600
Oxidation Induction Time(min)	≥60
Water vapor permeability coefficient ( gcm/(cms*Pa))	≤1.0x10-13
Dimensional Stability	±2.0

Pond Liner HDPE Geomembrane Professional Installation Tips:

The geomembrane can not be dragged and pull to avoid hu ing by sharp objects during carrying.

1. It should be extended from the bottom toward the top, can not tightly pull, it should keep 1.5% margins for local stretching. To view actual conditions, the laying sequence from top to bottom is adopted for the slope.

2. Two adjacent geomembrane's joints in the machine direction should not be on a levelline, should be staggered over 1 m. The overlap should be over 20cm.

3. The joints in the machine direction should be over 1.5m apa from the foot of dam, turn, should be located at the plane.

4. Laying order: first slope then the bottom of site

5. The direction of extened geomembrane should be basically paraliel with the line of maximum slope when laying the slope.

Welcome to Contact With Yixing Shenzhou !!!
