High Density HDPE Geomembrane Dam Liner ASTM Standard Anti UV Anti Seepage

Name: High Density HDPE Geomembrane Dam Liner ASTM Standard Anti UV Anti Seepage
Brand: Dengwanyi Co., Ltd
SKU: HDPE LDPE LLDPE
Price: 0.30 USD
Availability: InStock

Brand Name:	SZ
Model Number:	HDPE LDPE LLDPE
MOQ:	30000 square meters
Price:	$0.3-$2.0/SQM
Payment Terms:	T/T,L/C
Supply Ability:	100 Tons per day

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Product Name:

ASTM HDPE Geomembrane

Thickness:

0.3-3mm

Application:

Dam Liner

Function:

Anti UV Anti Seepager

Material:

HDPE LDPE LLDPE

Type:

Smooth Or Textured

Length:

50m-200m

Width:

1m-8m

Packaging Details:

Packed in woven bag or your requirements

Supply Ability:

100 Tons per day

Highlight:

ASTM Standard HDPE Geomembrane Liner

High Density HDPE Geomembrane Dam Liner

Product Description

Anti UV Anti Seepager ASTM Standard HDPE Geomembrane DAM LINER SUPPLIERS

Yixing Shenzhou HDPE Geomembrane

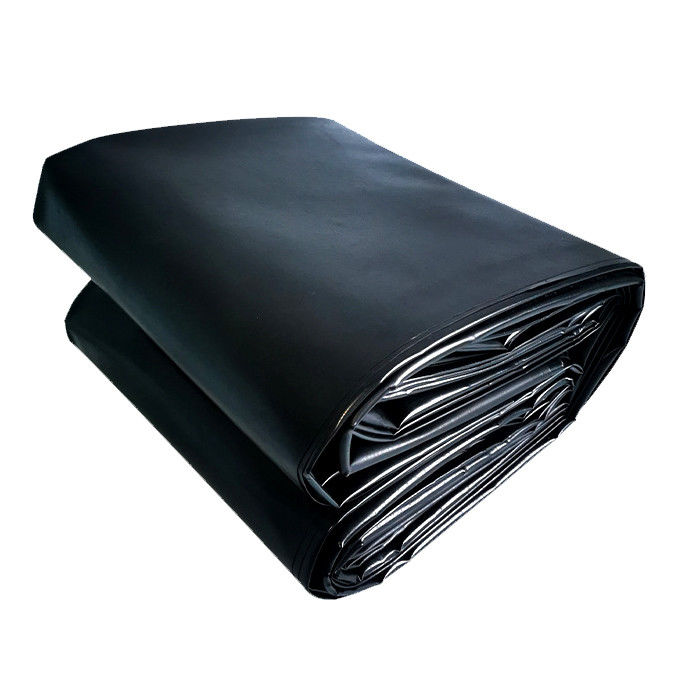

HDPE geomembrane is made of high density polyethylene resin by film-blowing process, adding carbon black, antioxidant , anti-aging and UV-resistance component and provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.(model according to the thickness of distinction, different thickness and different price) production capacity: thickness:0.1mm -3mm, width: 1-8 meters. It is suitable for seepage control in special industries, and is widely used for aquaculture, seepage control, reservoirs or sewage treatment ponds.

Yixing Shenzhou HDPE Geomembrane Application

1. landfill,sewage or control the waste residue seashores seepage.
2. Lake dam,tailings dams,sewage dam and reservoir,channel,storage of liquid pools(pit,ore)
3. The subway ,tunnel,anti-seepage lining of basement and tunnel.
4.To control the roadbed and other foundation saline seepage.

High Density HDPE Geomembrane Dam Liner ASTM Standard Anti UV Anti Seepage 0

Waterproof HDPE Geomembrane Sewage-Specific Installation Protocol

Subgrade Preparation
- 95% Proctor compaction
- Geotextile protection layer (300g/m² recommended)

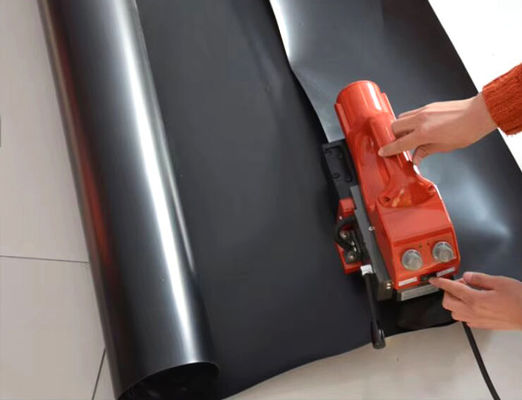

Welding Requirements
- Dual-track hot wedge seams
- 100% seam testing (spark/vacuum)
Anchoring System
- Termination trenches with polymer anchors
- Overflow pipe penetrations with boot details

No.	Properties	Test Method	Test Value
1	Thickness(mm)	ASTM D5199	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
2	Density (g/cm2)	ASTM D1505	0.939
3	Tensile Propeties
	Yield Strength(N/mm)	ASTM D6693	7	11	15	18	22	29	37	44
	Break Strength(N/mm)	ASTM D6693	13	20	27	33	40	53	67	80
	Yield Elongation %	Type IV	12
	Break Elongation %	Type IV	700
4	Tear Resistance/N	ASTM D1004	62	93	125	156	187	249	311	374
5	Puncture Resistance/N	ASTM D4833	160	240	320	400	480	640	800	960
6	Stress Crack resistance/hr	ASTM D5397 (App.)	300
7	Carbon Black
	Carbon Black Content %	ASTM D1603	2.0-3.0
	Carbon Black Dispersion	ASTM D5596	Carbon black dispersion(only near spherical agglomerates)for 10 different views 9 in categories 1 or 2 and 1 in category 3
8	Oxidative Induction Time(OIT)
	Standard OIT/min	ASTM D3895	100
	High Pressure OIT/min	ASTM D5885	400
9	Oven Aging at 85°C
	Standard OIT-% retained after 90 days	ASTM D3895	55
	High pressure OIT-% retained after 90 days	ASTM D5885	80
10	UV Resistance
	Standard OIT retained after 1600 hrs	ASTM D3895	50
	High pressure OIT retained after 1600 hrs	ASTM D5885	50
11	Low tempreture impact brittle property at -70°C	_	Pass
12	Permeability g·cm/(cm2)·Pa	_	≤1.0×10-13
13	Dimensional Stability/%	_	±2

Welcome to Contact With Yixing Shenzhou !!!
