100-100KN/M Bitumen Coated Fiberglass Geogrid Asphalt Pavement Reinforcement Geogrid

Brand Name:	SZ
Model Number:	FG
MOQ:	10,000 Square Meter
Price:	$0.3-$2.0/SQM
Payment Terms:	L/C,T/T
Supply Ability:	100,000 Square Meters per Week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Product Name:

Bitumen Coated Fiberglass Geogrid

Material:

Fiberglass Yarn

Coating:

Bitumen & Asphalt Geogrid

Tensile Strength:

50kN/m-300kN/m

Elongation Rate:

<=4%

Width:

1-6m

Length:

50m-100m

Mesh Size:

25.4*25.4mm 12.5*12.5 50.8*50.8

Technology:

Fiberglass Filaments

Coated:

High Quality Modified Asphalt

Packaging Details:

By roll, paper pipe + black PE shrinkage membrane + woven bag ( waterproof & UV resistance)

Supply Ability:

100,000 Square Meters per Week

Highlight:

100-100KN/M Bitumen Coated Fiberglass Geogrid

100KN/M Asphalt Pavement Reinforcement Geogrid

Product Description

100-100KN/M Bitumen Coated Fiberglass Geogrid Asphalt Pavement Reinforcement Geogrid

Description

Fiberglass Geogrid is a high-performance geosynthetic material made from fiberglass (AR-glass) yarns coated with a protective polymer (usually modified asphalt or PVC). It is designed for soil stabilization, asphalt reinforcement, and structural strengthening in roads, pavements, retaining walls, and slopes

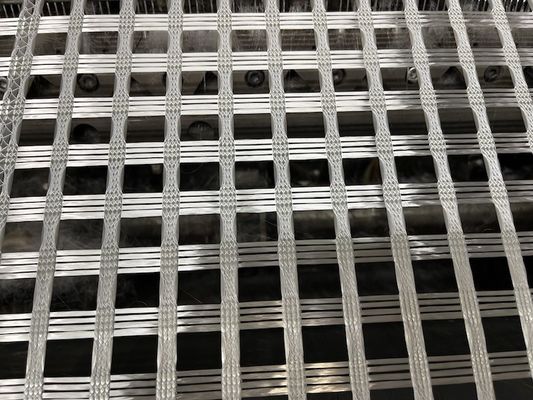

Yixing shenzhou fiberglass geogrid is produced by our import German "Liba" warp knitting machine.

Why Choose Yixing Shenzhou Fiberglass Geogrid?

Fiberglass geogrids are lightweight, corrosion-resistant, and high-tensile geosynthetic materials designed for soil stabilization, asphalt reinforcement, and erosion control.

Superior Strength – High tensile modulus for long-term load distribution.
Alkali-Resistant Coating – Withstands harsh soil and environmental conditions.
Lightweight & Easy to Install – Reduces labor and transportation costs.
Prevents Reflective Cracking – Ideal for road pavements and overlays.
Non-Corrosive – Unlike steel, it won’t rust or degrade over time.

Applications of Fiberglass Geogrid

1. Road & Highway Reinforcement

Reduces asphalt cracking and rutting.
Extends pavement lifespan.

2. Retaining Walls & Slopes

Provides structural stability for reinforced soil structures.

3. Airport Runways & Parking Lots

Enhances load-bearing capacity for heavy traffic areas.

4. Landfill & Erosion Control

Strengthens soil layers and prevents erosion.

100-100KN/M Bitumen Coated Fiberglass Geogrid Asphalt Pavement Reinforcement Geogrid 0

Fiberglass Geogrid Specification

Fiberglass geogrid technological standard(GB/T 21825-2008)
specification		FG30×30	FG50×50	FG 60×60	FG 80×80	FG 100×100	FG 120×120	FG 150×150
Mesh center distance(mm)	MD	25.4±3.8 , 12.7±3.8
Mesh center distance(mm)	CMD	25.4±3.8 , 12.7±3.8
breaking strength(kn/m)	MD	30	50	60	80	100	120	150
breaking strength(kn/m)	CMD	30	50	60	80	100	120	150
Breaking Elongation(%)	MD	4	4	4	4	4	4	4
Breaking Elongation(%)	CMD	4	4	4	4	4	4	4
Width(m)		1m-6m	1m-6m	1m-6m	1m-6m	1m-6m	1m-6m	1m-6m

Customization options

Customized packaging (Min. order: 50000 square meters)

Graphic customization (Min. order: 50000 square meters)

Customized logo (Min. order: 50000 square meters)
