3M Width Tunnel Anti Seepage HDPE Geomembrane

Name: 3M Width Tunnel Anti Seepage HDPE Geomembrane
Brand: Shenzhou Earth Working Material Co. Ltd
SKU: HDPE LDPE LLDPE
Price: 0.30 USD
Availability: InStock

Brand Name:	SZ
Model Number:	HDPE LDPE LLDPE
MOQ:	30000 square meters
Price:	$0.3-$2.0/SQM
Payment Terms:	T/T,L/C
Supply Ability:	100 Tons per day

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Product Name:

HDPE Geomembrane

Application:

Tunnel Anti-Seepage

Standard:

ASTM GM13

Material:

HDPE LDPE LLDPE

Type:

Smooth Or Textured

Length:

50m-100m

Width:

1m-8m

Thickness:

0.3-2mm

Packaging Details:

Packed in woven bag or your requirements

Supply Ability:

100 Tons per day

Highlight:

Anti Seepage HDPE Geomembrane

HDPE Geomembrane

3M Width Tunnel HDPE Geomembrane

Product Description

3M Width Tunnel Anti-Seepage HDPE Geomembrane From Chinese Factory

HDPE Geomembranes – Yixing Shenzhou

· HDPE geomembrane is a flexible waterproof material with a high impermeability coefficient (1×10-17cm/s)

· HDPE geomembrane has a good heat resistance and cold resistance, and its use environment temperature is high temperature 110℃, low temperature -70℃;

· HDPE geomembrane has good chemical stability and can resist the corrosion of strong acid, alkali, and oil. It is a good anti-corrosion material;

· HDPE geomembrane has high tensile strength so that it has a high tensile strength to meet the needs of high-standard engineering projects;

· HDPE geomembrane has strong weather resistance, strong anti-aging performance, and can be exposed for a long time while maintaining the original performance;

· HDPE geomembrane has strong tensile strength and elongation at break, which enables HDPE geomembrane to be used under various harsh geological and climatic conditions. Adapt to uneven geological settlement, strong strain;

· HDPE geomembrane is made of high-quality virgin plastic and carbon black particles do not contain any preservatives. HDPE has been used in my country to replace PVC as a raw material for food packaging bags and cling film.

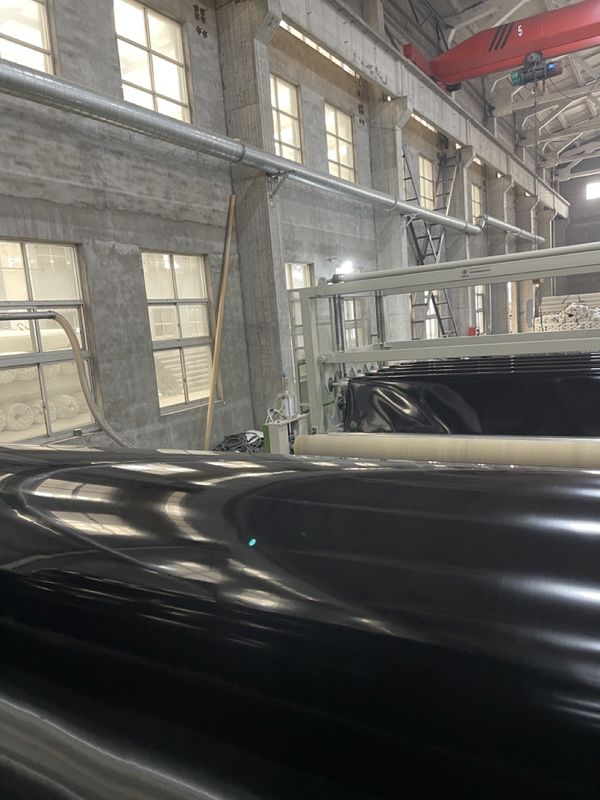

3M Width Tunnel Anti Seepage HDPE Geomembrane 0

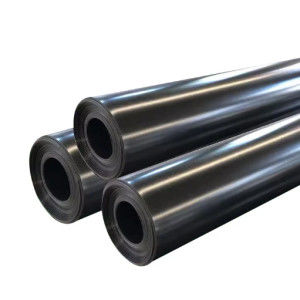

3M Width Tunnel Anti Seepage HDPE Geomembrane 1

HDPE Geomembrane TDS

No.	Properties	Test Method	Test Value
1	Thickness(mm)	ASTM D5199	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
2	Density (g/cm2)	ASTM D1505	0.939
3	Tensile Propeties
	Yield Strength(N/mm)	ASTM D6693	7	11	15	18	22	29	37	44
	Break Strength(N/mm)	ASTM D6693	13	20	27	33	40	53	67	80
	Yield Elongation %	Type IV	12
	Break Elongation %	Type IV	700
4	Tear Resistance/N	ASTM D1004	62	93	125	156	187	249	311	374
5	Puncture Resistance/N	ASTM D4833	160	240	320	400	480	640	800	960
6	Stress Crack resistance/hr	ASTM D5397 (App.)	300
7	Carbon Black
	Carbon Black Content %	ASTM D1603	2.0-3.0
	Carbon Black Dispersion	ASTM D5596	Carbon black dispersion(only near spherical agglomerates)for 10 different views 9 in categories 1 or 2 and 1 in category 3
8	Oxidative Induction Time(OIT)
	Standard OIT/min	ASTM D3895	100
	High Pressure OIT/min	ASTM D5885	400
9	Oven Aging at 85°C
	Standard OIT-% retained after 90 days	ASTM D3895	55
	High pressure OIT-% retained after 90 days	ASTM D5885	80
10	UV Resistance
	Standard OIT retained after 1600 hrs	ASTM D3895	50
	High pressure OIT retained after 1600 hrs	ASTM D5885	50
11	Low tempreture impact brittle property at -70°C	_	Pass
12	Permeability g·cm/(cm2)·Pa	_	≤1.0×10-13
13	Dimensional Stability/%	_	±2

3M Width Tunnel Anti Seepage HDPE Geomembrane 2

· Brand: SZ

· Product origin China

· Delivery time 7-14 Days

· Supply capacity 40′ HQ/ 7 Days
