Landfill Project Pond Liner HDPE Geomembrane Double Smooth Sheet 0.5mm Waterproof Membrane

Landfill Project Pond Liner HDPE Geomembrane Double Smooth Sheet 0.5mm Waterproof Membrane

Brand Name: SZ
Model Number: HDPE LDPE LLDPE
MOQ: 30000 square meters
Price: $0.3-$2.0/SQM
Payment Terms: T/T,L/C
Supply Ability: 100 Tons per day
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Product Name:
Landfill Project Pond Liner HDPE Geomembrane
Application:
Landfill Project
Function:
Anti Seepage Waterproof Membrane
Material:
HDPE LDPE LLDPE
Type:
Smooth Or Textured
Length:
50m-100m
Width:
1m-8m
Thickness:
0.3-3mm
Packaging Details:
Packed in woven bag or your requirements
Supply Ability:
100 Tons per day
Highlight:

Double Smooth Sheet HDPE Geomembrane

,

Pond Liner HDPE Geomembrane

,

Landfill Project Pond Liner HDPE Geomembrane

Product Description

Landfill Project Pond Liner HDPE Geomembrane Double Smooth Sheet 0.5mm Waterproof Membrane



HDPE Geomembrane can generally be divided into two categories: asphalt and polymer (synthetic polymer). Geomembrane containing bitumen is mainly composite (including woven or non-woven geotextile), and bitumen is used as an infiltration binder. Polymer geomembrane is divided into plastic geomembrane, elastic geomembrane, and combined geomembrane according to different main materials.



Many engineering practices have shown that the geomembrane is very impermeable, elastic, and capable of adapting to deformation, can be applied to different construction conditions and working stress, has good aging resistance, and is a geomembrane underwater and soil. The durability is particularly outstanding. Geomembrane has outstanding anti-seepage and waterproof properties.



HDPE Geomembranes for agricultural applications, such as manure lagoons and wastewater ponds, provide crucial environmental conservation of natural resources for future generations. Plus, they help your business remain efficient and economical by saving you time and money. Together, we can uncover the best solutions for your project while ensuring compliance with Federal, State or Provincial, and local regulations.

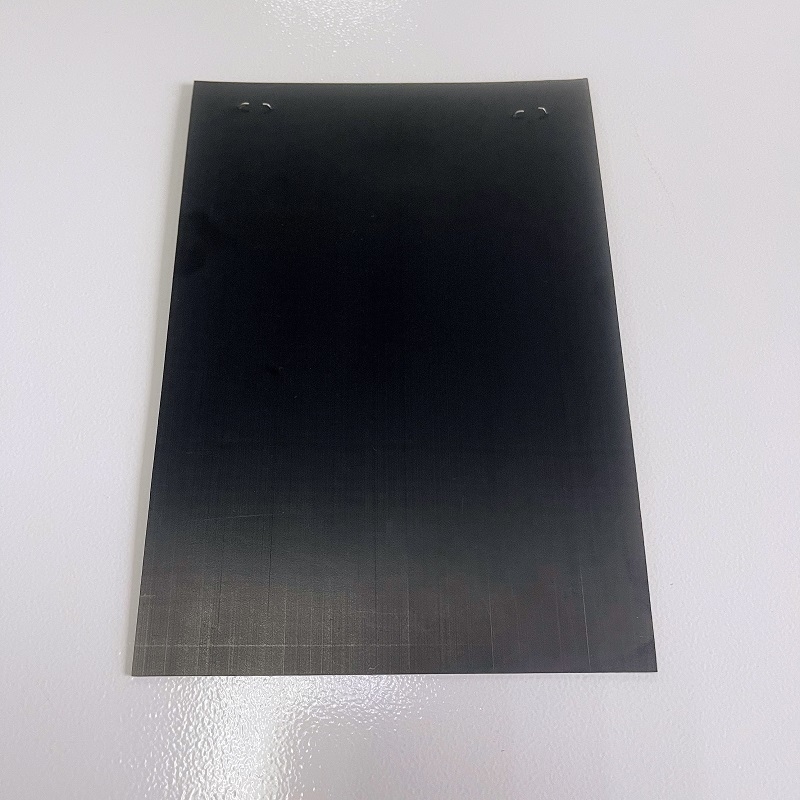

Landfill Project Pond Liner HDPE Geomembrane Double Smooth Sheet 0.5mm Waterproof Membrane 0Landfill Project Pond Liner HDPE Geomembrane Double Smooth Sheet 0.5mm Waterproof Membrane 1

Thickness options:

• 1.0mm • 1.5mm
• 2.0mm • 2.5mm
• 3.0mm



Properties
30mil
40mils
50mils
60mils
80mils
100mils
120mils
yield strength
63 lb/in.
84 lb/in.
105 lb/in
126 lb/in.
168 lb/in.
210 lb/in.
252 lb/in.
break strength
114 lb/in
152 lb/in
190 lb/in
228 lb/in
304 lb/in
380 lb/in
456 lb/in
yield elongation
12%
break elongation
700%
Tear Resistance (min. ave.)
21 lb
28 lb
35 lb
42 lb
56 lb
70 lb
84 lb
Puncture Resistance (min. ave.)
54 lb
72 lb
90 lb
108 lb
144 lb
180 lb
216 lb
Carbon Black Content (range)
2.0-3.0%
2.0-3.0%



Geomembrane liners remain the optimal choice for various containment applications. With its excellent impermeability it allows for exceptional durability, high chemical & UV resistance and offering superior weldability whilst being flexible enough to allow for ease of installation without compromising its integrity.

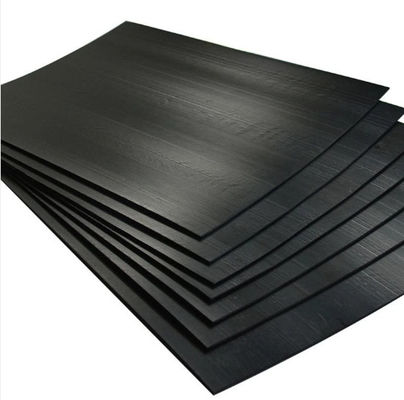

Landfill Project Pond Liner HDPE Geomembrane Double Smooth Sheet 0.5mm Waterproof Membrane 2
