HDPE Geomembrane
Created with Pixso.

Flexible Waterproof Material 1 MM HDPE Geomembrane For Irrigation Water Storage

Flexible Waterproof Material 1 MM HDPE Geomembrane For Irrigation Water Storage

Brand Name: SZ
Model Number: HDPE LDPE LLDPE
MOQ: 30000 square meters
Price: $0.3-$2.0/SQM
Payment Terms: T/T,L/C
Supply Ability: 100 Tons per day
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Product Name:
1mm HDPE Geomembrane
Application:
Irrigation & Water Storage
Function:
Anti Seepage Waterproof Membrane
Material:
HDPE LDPE LLDPE
Type:
Smooth Or Textured
Length:
50m-100m
Width:
1m-8m
Thickness:
0.3-3mm
Packaging Details:
Packed in woven bag or your requirements
Supply Ability:
100 Tons per day
Highlight:

Flexible Waterproof 1 MM HDPE Geomembrane

,

Irrigation 1 MM HDPE Geomembrane

,

Water Storage 1 MM HDPE Geomembrane

Product Description

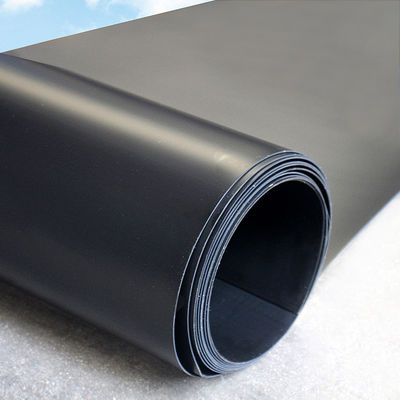

Flexible Waterproof Material 1 MM HDPE Geomembrane For Irrigation & Water Storage





HDPE Geomembrane is a waterproof barrier material with high molecular polymer as the basic raw material. It has excellent resistance to environmental stress cracking, low-temperature resistance, aging resistance, corrosion resistance, a large operating temperature range (-60–+60), and a long service life (70 years). It is widely used in seepage prevention of domestic waste landfills, seepage prevention of solid waste landfills, seepage prevention of sewage treatment plants, seepage prevention of artificial lakes, tailings treatment, and other seepage prevention projects.



Flexible Waterproof Material 1 MM HDPE Geomembrane For Irrigation Water Storage 0Flexible Waterproof Material 1 MM HDPE Geomembrane For Irrigation Water Storage 1


Main Function of HDPE Geomembrane :

Separation

One of the most important functions of geomembrane is its excellent seepage control performance. As geomembrane has a high degree of sealing, it can effectively prevent the infiltration of water or liquid, and is widely used in engineering projects to prevent water pollution. For example, at landfills, geomembranes are used to prevent waste leachate from entering the groundwater system. In the construction of reservoirs, ponds or other water storage facilities, geomembranes are also effective in preventing water leakage.

Flexible Waterproof Material 1 MM HDPE Geomembrane For Irrigation Water Storage 2



Pollution prevention

Geomembranes also have the function of isolating and preventing the spread of pollutants. In the field of waste disposal, sewage treatment, geomembrane can prevent harmful substances or pollutants from spreading to the surrounding environment, and protect soil, water and air from pollution. For example, in waste dumping sites, geomembranes, as barrier materials, can prevent toxic wastewater or chemical substances from penetrating into the groundwater and protect the surrounding ecological environment.

Flexible Waterproof Material 1 MM HDPE Geomembrane For Irrigation Water Storage 3

Reinforcement

To a certain extent, geomembranes can enhance the stability of the soil and prevent the soil from being eroded due to water flow or other external forces. In some areas where the soil is susceptible to water erosion or foundation impact, the geomembrane can enhance the soil’s resistance to scouring, thus improving the stability of the entire soil body.

Flexible Waterproof Material 1 MM HDPE Geomembrane For Irrigation Water Storage 4

Protective

Modern geomembranes are usually made of chemically resistant materials such as polyethylene (HDPE), polyvinyl chloride (PVC), etc., which are able to resist erosion by a wide range of chemicals. This makes the application of geomembranes in special environments such as the treatment of toxic wastes, acidic and alkaline wastewater, etc. much more widespread and effective. For example, at the bottom of chemical storage tanks, geomembranes can avoid chemical leakage and pollution.

Flexible Waterproof Material 1 MM HDPE Geomembrane For Irrigation Water Storage 5

Item
Smooth Geomembrane Technical Data
Thickness mm
0.30
0.50
0.75
1.00
1.25
1.50
2.00
2.50
3.00
Density g/cm3
>=0.940
Tensile yield strength(TD/MD)
≥4
≥7
≥10
≥13
≥16
≥20
≥26
≥33
≥40
Tensile Strength at Break(TD/MD)
≥6
≥10
≥15
≥20
≥25
≥30
≥40
≥50
≥60
Elongation at Yield(TD/MD)
_
_
_
≥11
Puncture Strength(N)
≥72
≥120
≥180
≥240
≥300
≥360
≥480
≥600
≥720
Elongation (TD/MD)
≥600
Oxidation Induction Time(min)
≥60
Water vapor permeability coefficient
( g*cm/(cm*s*Pa))

≤1.0x10-13
Dimensional Stability
±2.0

Order of YIXING SHENZHOU HDPE GEOMEMBRANE,PLS CONTACT:

Cathy

phone / Whatsapp / Wechat: 0086 139 0153 8890

E-mail: cathy@geogrid-cn.com



Yixing Shenzhou Geosynthetics has a comprehensive set of packaging and delivery service procedures. Over the past 20 years, Yixing Shenzhou has supplied thousands of containers to regions such as Latin America, North America, Southeast Asia, developed countries, and Africa. We offer packaging options for our products in rolls, pots, bags, sheets, or as per your specific order requirements.
